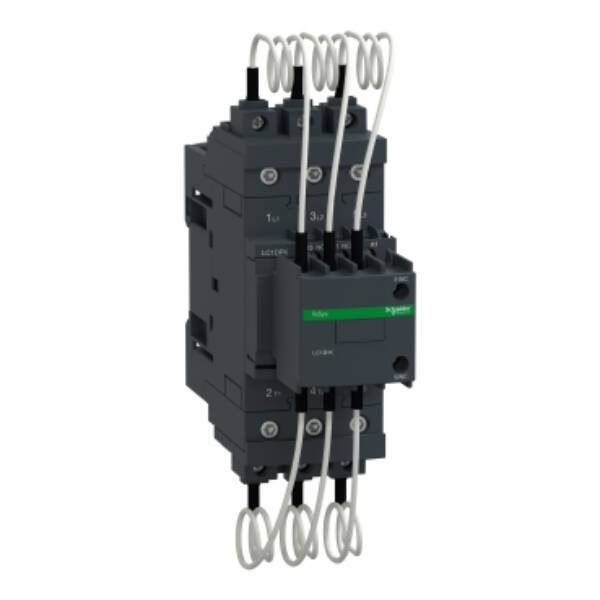

Capacitor contactor, TeSys D, 30 kVAR at 400 V/50 Hz, coil 230 V AC 50/60 Hz - Schneider Electric - LC1DPKP7

Capacitor contactor, TeSys D, 30 kVAR at 400 V/50 Hz, coil 230 V AC 50/60 Hz - Schneider Electric - LC1DPKP7

LC1DPKP7

Capacitor contactor, TeSys D, 30 kVAR at 400 V/50 Hz, coil 230 V AC 50/60 Hz - Schneider Electric - LC1DPKP7

Control

~~List Price £218.88 +VAT~~

Our Price £164.16 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400V 50Hz (50kVAR@690V). It provides a 230V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 100 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, (RoHS/REACh). Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DPKP7
Weight (kg): 1.10 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 55
Rated control supply voltage AC 50 Hz: 230 Volt
Rated control supply voltage AC 60 Hz: 230 Volt
Rated blind power at 400 V, 60 Hz: 30
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 2
Number of auxiliary contacts as normally open contact: 1
Operating voltage AC 50 Hz: 440 Volt
Operating voltage AC 60 Hz: 440 Volt
Depth: 156
Height: 166
Voltage type for actuating: AC
Rated blind power at 400 V, 50 Hz: 30

Datasheet for LC1DPKP7 - Capacitor contactor, TeSys D, 30 kVAR at 400 V/50 Hz, coil 230 V AC 50/60 Hz - Schneider Electric - LC1DPKP7

Download
