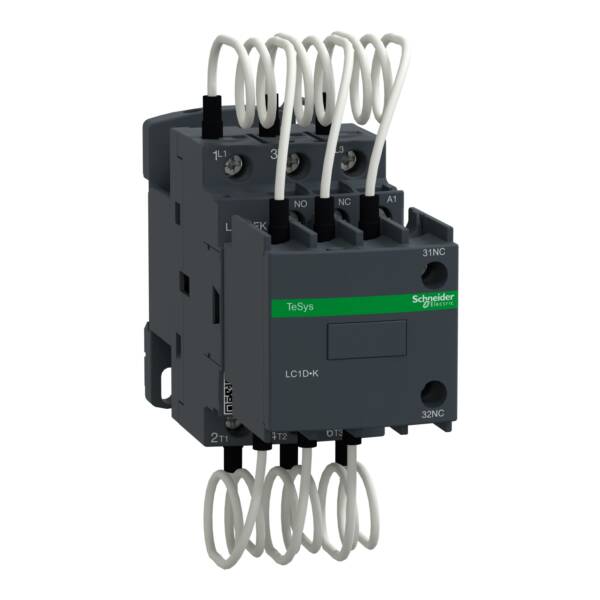

Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 110 V AC 50/60 Hz - Schneider Electric - LC1DFKF7

Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 110 V AC 50/60 Hz - Schneider Electric - LC1DFKF7

LC1DFKF7

Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 110 V AC 50/60 Hz - Schneider Electric - LC1DFKF7

Control

~~List Price £97.74 +VAT~~

Our Price £73.31 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 12.5kVAR@400V 50Hz (21kVAR@690V). It provides a 110V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DFKF7
Weight (kg): 0.56 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Rated control supply voltage AC 50 Hz: 110 Volt
Rated blind power at 400 V, 60 Hz: 12.5
Rated control supply voltage AC 60 Hz: 110 Volt
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 2
Number of auxiliary contacts as normally open contact: 1
Operating voltage AC 50 Hz: 440 Volt
Depth: 121
Operating voltage AC 60 Hz: 440 Volt
Voltage type for actuating: AC
Height: 115
Rated blind power at 400 V, 50 Hz: 12.5

Datasheet for LC1DFKF7 - Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 110 V AC 50/60 Hz - Schneider Electric - LC1DFKF7

Download
