LULC08

CANopen communication module - for TeSys U - 24 V DC - Schneider Electric - LULC08

Industrial Automation and Control

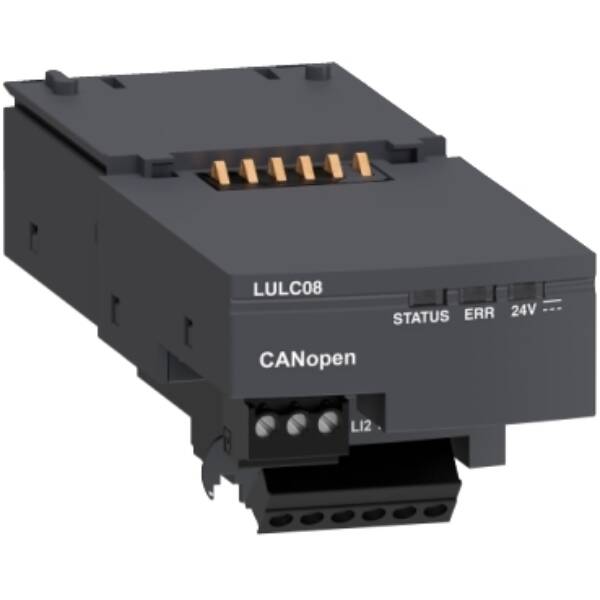

TeSys U communication module for CANopen, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a 9-point SUB-D male connector for connection to a CANopen network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs giving the status of the module (24V) and communication line (STATUS, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £188.12 +VAT~~

Our Price £141.09 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
