Cam changeover switch,,2 poles, 45°, 12 A for Ø22 mm - Schneider Electric - K1D002UCH

Cam changeover switch,,2 poles, 45°, 12 A for Ø22 mm - Schneider Electric - K1D002UCH

K1D002UCH

Cam changeover switch,,2 poles, 45°, 12 A for Ø22 mm - Schneider Electric - K1D002UCH

Control

~~List Price £37.37 +VAT~~

Our Price £28.03 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

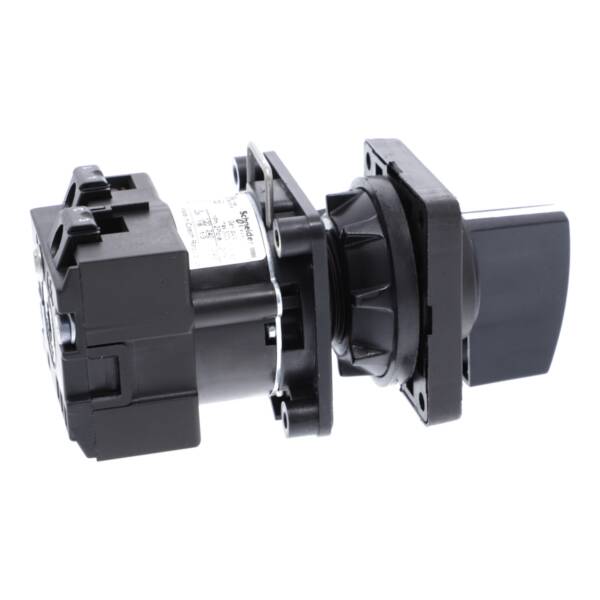

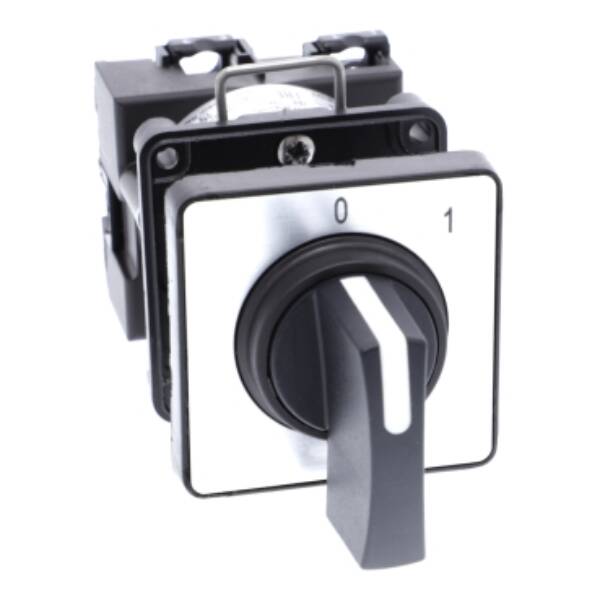

This K1 2-pole changeover switch is ideal for direct control of simple machines, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs in a 22mm hole. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.

Brand: Schneider Electric
Range: Harmony K
Part No: K1D002UCH
Weight (kg): 0.17 kg
Type: Harmony K
With 0 (off) position: TRUE
Type of electrical connection of main circuit: Screw connection
With retraction in 0-position: FALSE
Rated operation power at AC-3, 400 V: 1.5
Type of control element: Long turning handle
Model: Reverser
Degree of protection (IP), front side: IP65/IP67
Rated permanent current Iu: 12
Complete device in housing: TRUE
Number of poles: 2
Suitable for front mounting 4-hole: TRUE
Suitable for distribution board installation: FALSE
Rated operation current Ie at AC-3, 400 V: 3.3
Suitable for intermediate mounting: TRUE
Suitable for ground mounting: FALSE

Datasheet for K1D002UCH - Cam changeover switch,,2 poles, 45°, 12 A for Ø22 mm - Schneider Electric - K1D002UCH
