cam changeover switch - 4-pole - 60° - 10 A - for Ø 16 or 22 mm - Schneider Electric - K10H014UCH

cam changeover switch - 4-pole - 60° - 10 A - for Ø 16 or 22 mm - Schneider Electric - K10H014UCH

K10H014UCH

cam changeover switch - 4-pole - 60° - 10 A - for Ø 16 or 22 mm - Schneider Electric - K10H014UCH

Control

~~List Price £53.56 +VAT~~

Our Price £40.17 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

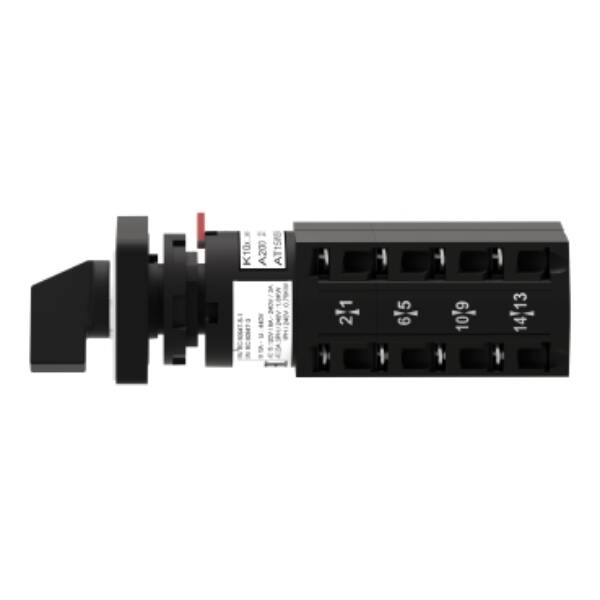

This Harmony K10 complete cam switch/selector switch has 4 poles (4P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Brand: Schneider Electric
Range: Harmony K
Part No: K10H014UCH
Weight (kg): 0.09 kg
Type: Harmony K
Type of electrical connection of main circuit: Screw connection
With zero (off) position: FALSE
With retraction in 0-position: FALSE
Type of control element: Long turning handle
Model: Reverser
Housing material: Other
Degree of protection (IP), front side: IP65/IP67
Rated permanent current Iu: 10
Complete device in housing: TRUE
Degree of protection (NEMA), front side: Other
Number of poles: 4
Suitable for front mounting: TRUE
Suitable for distribution board installation: FALSE
Rated operation current Ie at AC-3, 400 V: 2
Suitable for intermediate mounting: TRUE
Suitable for floor mounting: FALSE

Datasheet for K10H014UCH - cam changeover switch - 4-pole - 60° - 10 A - for Ø 16 or 22 mm - Schneider Electric - K10H014UCH

Download
