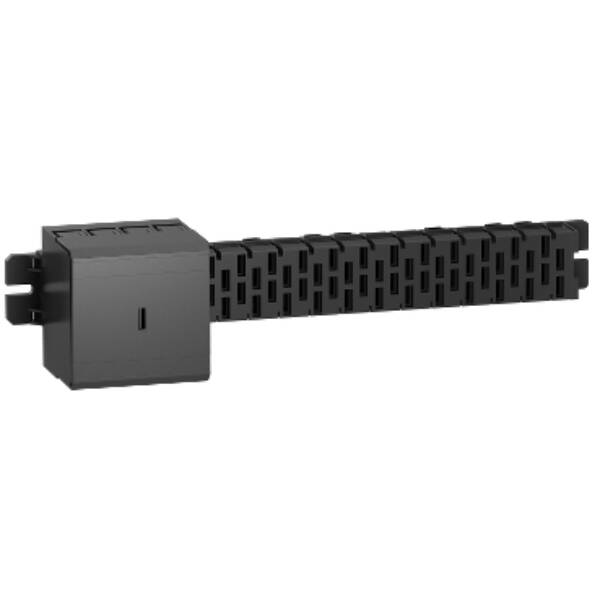

BUSBAR TETRA 160A LG 344M - Schneider Electric - AK5JB143

BUSBAR TETRA 160A LG 344M - Schneider Electric - AK5JB143

AK5JB143

BUSBAR TETRA 160A LG 344M - Schneider Electric - AK5JB143

Enclosures

~~List Price £99.77 +VAT~~

Our Price £74.83 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Linergy busbar for AC network. It applies to distribution, 18 Tap-offs and 4 conductors. The rated operational current is 160 A at 35 °C. Mounting by horizontal and vertical which using side stop AK5BT01 on mounting plates AK5PA. It provides protection for AM fuses, GF fuses and NS160H circuit breaker. IPxx B conforming to IEC 60529 and 850 °C fire resistance conforming to IEC 60695. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It conforms to RoHS.

Brand: Schneider Electric
Range: Linergy HK
Part No: AK5JB143
Weight (kg): 0.98 kg
Length: 344
Colour: Grey
Width: 82
Length busbar trunk: 344
Model: Single
Number of conductors (without earthing): 4
RAL-number: 7021
Rated current at AC 50 Hz: 160
Number of poles: 4
Flexible: FALSE
Rated voltage at AC 50 Hz: 400…690 V
Height: 81
Degree of protection (IP): IP20
Number of tap-off units: 12

Datasheet for AK5JB143 - BUSBAR TETRA 160A LG 344M - Schneider Electric - AK5JB143

Download
