VW3A7746

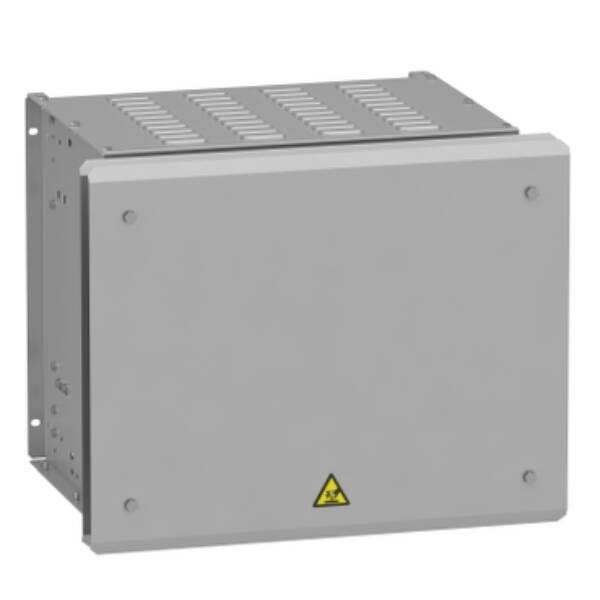

braking resistor - 5 ohms - 6.9 kW - IP23 - Schneider Electric - VW3A7746
Automation
List Price £3,445.98
+VAT
Our Price £2,584.49
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 5Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 27kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Brand
Schneider Electric
Range
Altivar Process ATV900
Part No
VW3A7746
Weight (kg)
29.70 kg
Type
Altivar Process ATV900
Type of accessory
Breaking resistance
Datasheet for VW3A7746 - braking resistor - 5 ohms - 6.9 kW - IP23 - Schneider Electric - VW3A7746
Download
