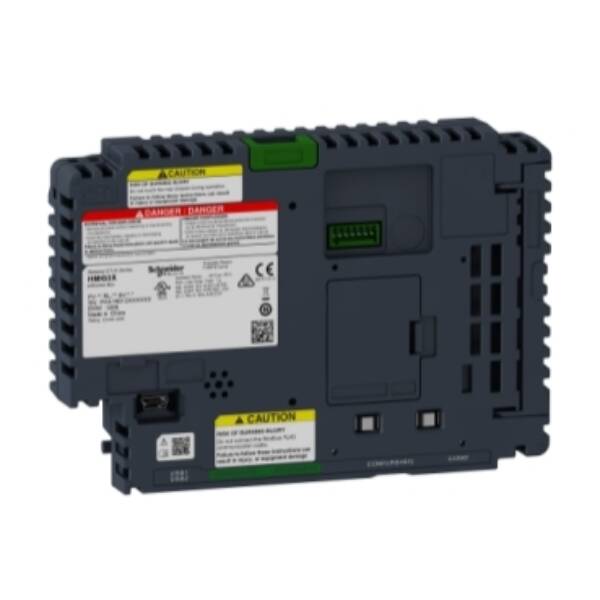

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated - Schneider Electric - HMIG3X

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated - Schneider Electric - HMIG3X

HMIG3X

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated - Schneider Electric - HMIG3X

Automation

~~List Price £1,224.65 +VAT~~

Our Price £1,040.95 +VAT

SAVE 16% OFF List Price

Estimated delivery between 7-10 working days

"This product is part of the Harmony GTUX range, an offer of eXtreme Box modules." "These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments." "It is designed with backup memory of NVRAM 512kB, system memory of 1GB, and internal RAM of 256MB." "It offers atmospheric resistance with partial conformal coating." "It comes with 2x Ethernet TCP/IP protocol and can operate between temperature range of -30 to 70 °C." "This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC." "Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg." "It is compatible with HMIDT35X, HMIDT65X, HMIDT75X displays." "It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards." "Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software."

Brand: Schneider Electric
Range: Harmony GTUX
Part No: HMIG3X
Weight (kg): 1.21 kg
Type: Harmony GTUX
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces USB: 3
Useful project memory/user memory: 512
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: TRUE
Supporting protocol for INTERBUS-Safety: FALSE
With printer output: TRUE
Process default value (input) possible: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: TRUE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP67
Radio standard UMTS: FALSE
Number of online languages: 10
Additional software components, loadable: FALSE
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: TRUE
Operation temperature: -30…70 °C
Built-in depth: 45
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: TRUE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Suitable for safety functions: FALSE
Width of the front: 188
Supporting protocol for MODBUS: TRUE
Supporting protocol for Data-Highway: FALSE
Height of the front: 131
Supply voltage DC: 12 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of HW-interfaces RS-422: 2
Number of HW-interfaces RS-485: 2
Number of HW-interfaces industrial Ethernet: 5
Number of HW-interfaces RS-232: 2

Datasheet for HMIG3X - Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated - Schneider Electric - HMIG3X

Download
