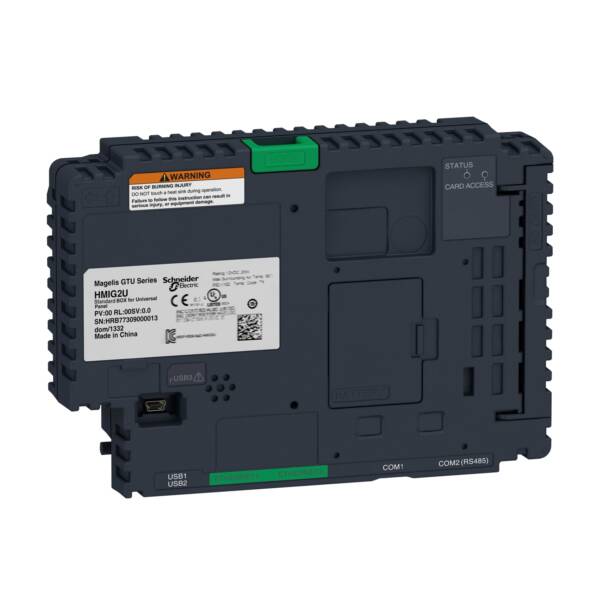

Base unit, Harmony GTU, Standard Box for Universal Panel - Schneider Electric - HMIG2U

Base unit, Harmony GTU, Standard Box for Universal Panel - Schneider Electric - HMIG2U

HMIG2U

Base unit, Harmony GTU, Standard Box for Universal Panel - Schneider Electric - HMIG2U

Automation

~~List Price £725.72 +VAT~~

Our Price £616.86 +VAT

SAVE 16% OFF List Price

Estimated delivery between 7-10 working days

"This product is part of the Harmony GTU range, an offer of Harmony GTU Universal Box Modules." "The standard box features Vijeo Designer run time 8000 variables software package." "It is designed with backup memory of FRAM/MRAM 512kB and internal memory of RAM 1GB." "It is equipped with 10BASE-T/100BASE-T Ethernet port." "Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway." "Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg." "This product is certified by ATEX, IECEx, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards." "Harmony GTU are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness."

Brand: Schneider Electric
Range: Harmony GTU
Part No: HMIG2U
Weight (kg): 1.12 kg
Type: Harmony GTU
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: FALSE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP66
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Supporting protocol for DeviceNet Safety: FALSE
Touch technology: Resistive touch
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: 0…60 °C
Screen diagonal: 7
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Number of pixels, horizontal: 800
Supporting protocol for CAN: FALSE
With colour display: TRUE
Supporting protocol for INTERBUS: FALSE
Number of colours of the display: 262144
IO link master: FALSE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 12…24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 480

Datasheet for HMIG2U - Base unit, Harmony GTU, Standard Box for Universal Panel - Schneider Electric - HMIG2U

Download
