Brand
-
Schneider Electric
-
Range
-
Harmony GTU
-
Part No
-

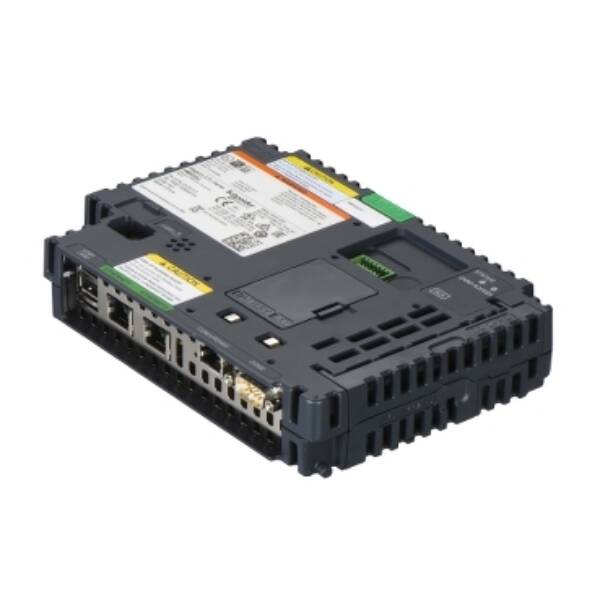

HMIG3UFC
-
Weight (kg)
-
1.09 kg
-
Type
-
Harmony GTU
-
With message indication
-
FALSE
-
Supporting protocol for SERCOS
-
FALSE
-
Number of HW-interfaces other
-
2
-
Number of HW-interfaces USB
-
2
-
Useful project memory/user memory
-
512
-
With numeric keyboard
-
FALSE
-
With alpha numeric keyboard
-
FALSE
-
Radio standard GPRS
-
FALSE
-
With message system (incl. buffer and confirmation)
-
FALSE
-
Process value representation (output) possible
-
TRUE
-
Supporting protocol for INTERBUS-Safety
-
FALSE
-
With printer output
-
TRUE
-
Process default value (input) possible
-
FALSE
-
Supporting protocol for AS-Interface Safety at Work
-
FALSE
-
With recipes
-
TRUE
-
Radio standard GSM
-
FALSE
-
Degree of protection (IP), front side
-
IP67
-
Radio standard UMTS
-
FALSE
-
Number of online languages
-
10
-
Additional software components, loadable
-
FALSE
-
Supporting protocol for DeviceNet Safety
-
FALSE
-
Supporting protocol for EtherNet/IP
-
TRUE
-
Supporting protocol for Foundation Fieldbus
-
FALSE
-
With SW interfaces
-
TRUE
-
Operation temperature
-
0…60 °C
-
Built-in depth
-
45
-
Supporting protocol for SafetyBUS p
-
FALSE
-
Voltage type of supply voltage
-
DC
-
Supporting protocol for PROFINET CBA
-
FALSE
-
Supporting protocol for PROFINET IO
-
FALSE
-
Supporting protocol for PROFIsafe
-
FALSE
-
Supporting protocol for ASI
-
FALSE
-
Radio standard Bluetooth
-
FALSE
-
Radio standard WLAN 802.11
-
FALSE
-
Supporting protocol for PROFIBUS
-
FALSE
-
Supporting protocol for TCP/IP
-
TRUE
-
Supporting protocol for KNX
-
FALSE
-
Supporting protocol for CAN
-
FALSE
-
Supporting protocol for INTERBUS
-
FALSE
-
IO link master
-
FALSE
-
Supporting protocol for DeviceNet
-
FALSE
-
Rail mounting possible
-
FALSE
-
Suitable for safety functions
-
FALSE
-
Width of the front
-
188
-
Supporting protocol for MODBUS
-
TRUE
-
Height of the front
-
131
-
Supporting protocol for Data-Highway
-
FALSE
-
Supply voltage DC
-
12…24 V
-
Supporting protocol for LON
-
FALSE
-
Supporting protocol for other bus systems
-
FALSE
-
Supporting protocol for SUCONET
-
FALSE
-
Wall mounting/direct mounting
-
TRUE
-
Number of HW-interfaces RS-422
-
1
-
Number of HW-interfaces RS-485
-
2
-
Number of HW-interfaces industrial Ethernet
-
2
-
Number of HW-interfaces RS-232
-
1
