VW3A3725

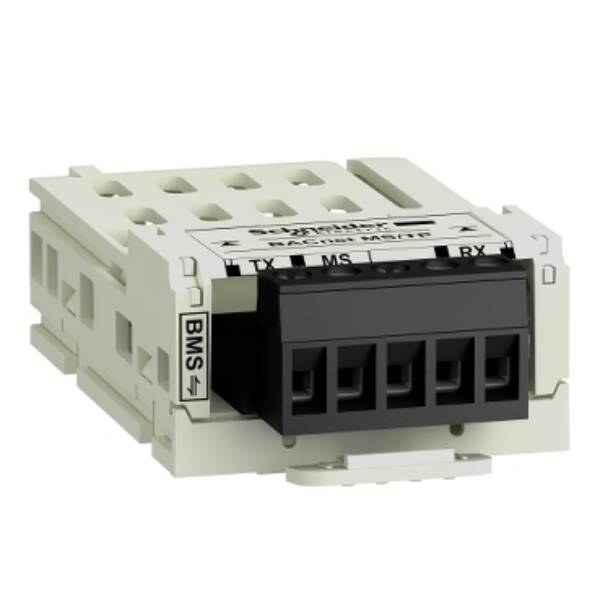

BACnet MS/TP communication module - Altivar Process ATV600 - Schneider Electric - VW3A3725

Automation

~~List Price £260.10 +VAT~~

Our Price £195.08 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"This BACnet MS/TP communication module is an option for variable speed drives of the Altivar range." "It is equipped with an RS485 5-pin removable terminal block." "It is compatible with Altivar Process drives." "This module allows AV, BV, MSV BACnet MS/TP, and COV notification communication services." "The transmission rate is up to 76.8kbit/s." "It has 4 LEDs: one showing error, one transmission activity, one reception activity (RX), and one module status." "It weighs 0.035kg." "It enables integration of your variable speed drive in your process control network." "Its protection index is IP20, and it conforms to BTL, CSA, IEC 61000 (4-2, 4-3, 4-4, 4-5, 4-6, 6-1, and 6-3), IEC 60730-1, UL508, and UL 873 standards."

Brand: Schneider Electric
Range: Altivar Process ATV600
Part No: VW3A3725
Weight (kg): 0.06 kg
Type: Altivar Process ATV600
