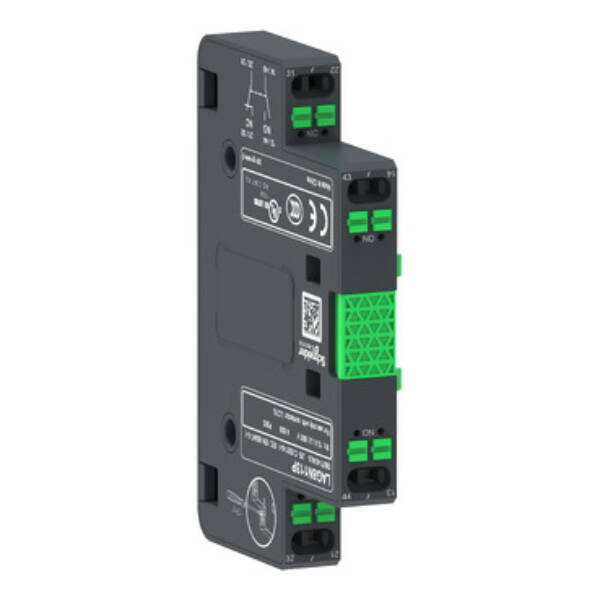

Auxiliary contact block, TeSys Giga, 1NO + 1NC, lateral face side mounting, push-in terminals L1/R1 - Schneider Electric - LAG8N113P

Auxiliary contact block, TeSys Giga, 1NO + 1NC, lateral face side mounting, push-in terminals L1/R1 - Schneider Electric - LAG8N113P

LAG8N113P

Auxiliary contact block, TeSys Giga, 1NO + 1NC, lateral face side mounting, push-in terminals L1/R1 - Schneider Electric - LAG8N113P

Control

~~List Price £14.14 +VAT~~

Our Price £10.61 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric
Range: TeSys Giga contactors
Part No: LAG8N113P
Weight (kg): 0.06 kg
Type: TeSys Giga
Number of contacts as normally open contact: 1
Number of contacts as normally closed contact: 1
Type of electric connection: Spring clamp connection
Model: Integrable
Rated operation current Ie at AC-15, 230 V: 10
Mounting method: Side mounting
Lamp holder: None

Datasheet for LAG8N113P - Auxiliary contact block, TeSys Giga, 1NO + 1NC, lateral face side mounting, push-in terminals L1/R1 - Schneider Electric - LAG8N113P

Download
