ATS22 - control 110 V - power 208 V (75hp) - Schneider Electric - ATS22C25S6U

ATS22 - control 110 V - power 208 V (75hp) - Schneider Electric - ATS22C25S6U

ATS22C25S6U

ATS22 - control 110 V - power 208 V (75hp) - Schneider Electric - ATS22C25S6U

Automation

~~List Price £2,732.78 +VAT~~

Our Price £2,049.59 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

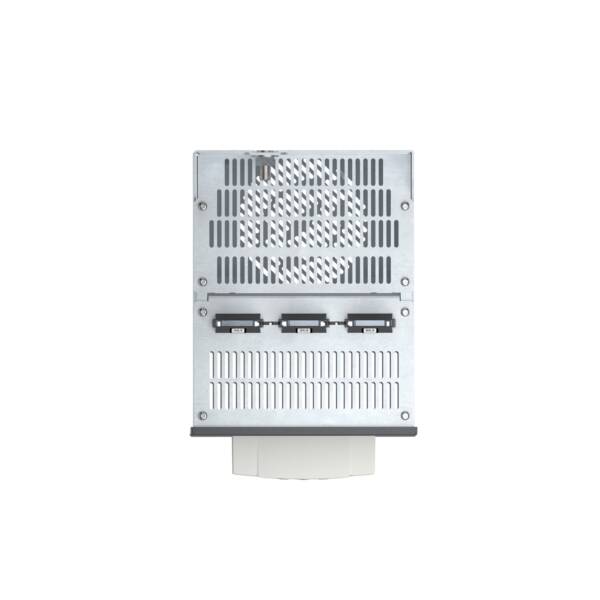

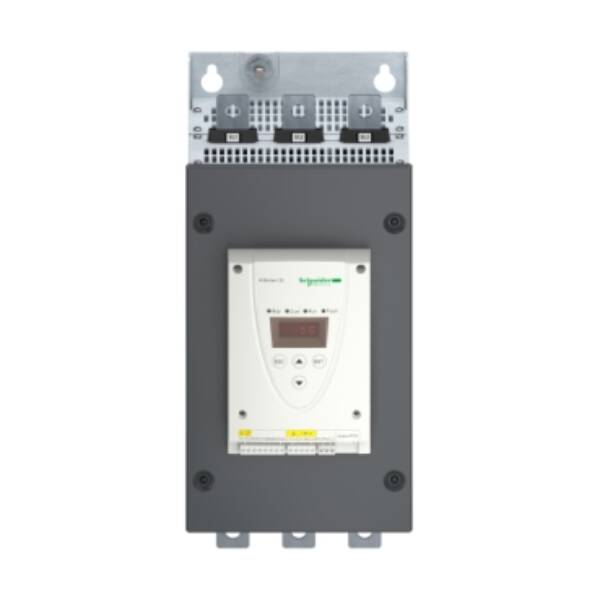

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 250A, a rated power from 75HP to 250HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand: Schneider Electric
Range: Altistart 22
Part No: ATS22C25S6U
Weight (kg): 26.75 kg
Type: Altistart 22
With display: FALSE
Rated control supply voltage AC 50 Hz: 110 Volt
Rated control supply voltage AC 60 Hz: 110 Volt
Rated operating voltage Ue: 208…600 Volt
Release class: Other
Rated operation current Ie at 40 °C Tu: 250
Internal bypass: TRUE
Torque control: TRUE
Rated power three-phase motor, inline, at 230 V: 75
Rated power three-phase motor, inline, at 400 V: 132
Voltage type for actuating: AC/DC
Degree of protection (IP): IP20
Integrated motor overload protection: TRUE
Function: Single direction
Rated surrounding temperature without derating: 40

Datasheet for ATS22C25S6U - ATS22 - control 110 V - power 208 V (75hp) - Schneider Electric - ATS22C25S6U

Download
