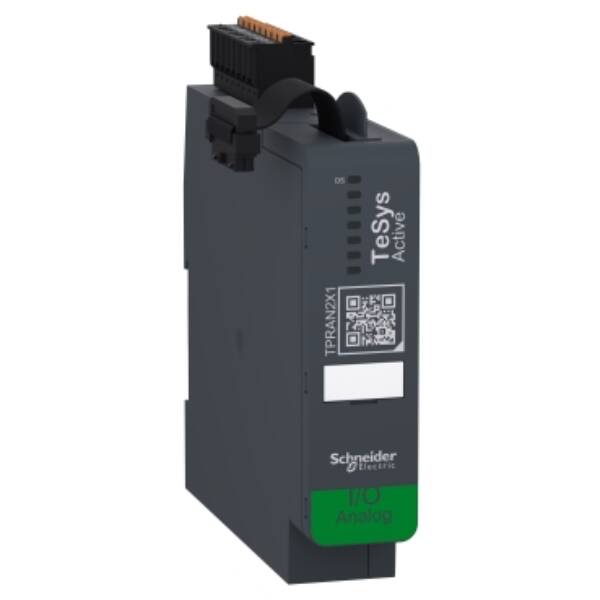

Analog IO module, TeSys island, 2 inputs, 1 output - Schneider Electric - TPRAN2X1
Analog IO module, TeSys island, 2 inputs, 1 output - Schneider Electric - TPRAN2X1

TPRAN2X1

Analog IO module, TeSys island, 2 inputs, 1 output - Schneider Electric - TPRAN2X1

Control

List Price £120.00 +VAT

Our Price £90.00 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Brand
Schneider Electric
Range
TeSys island
Part No
TPRAN2X1
Weight (kg)
0.25 kg
Type
TeSys island
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
2
Analogue inputs configurable
TRUE
Analogue outputs configurable
TRUE
SIL according to IEC 61508
None
System accessory
TRUE
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
FALSE
Height
118
Fieldbus connection over separate bus coupler possible
TRUE
Supporting protocol for INTERBUS-Safety
FALSE
Width
25
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
114
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Input, thermocouple
TRUE
Input signal, configurable
TRUE
Supporting protocol for SafetyBUS p
FALSE
Type of electric connection
Plug-in connection
Voltage type of supply voltage
DC
Input, resistor
FALSE
Input, resistance thermometer
TRUE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Input, current
TRUE
Supporting protocol for PROFIsafe
FALSE
Input voltage
TRUE
Radio standard Bluetooth
FALSE
Supporting protocol for ASI
FALSE
Supporting protocol for PROFIBUS
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Supporting protocol for TCP/IP
FALSE
Front build in possible
FALSE
Supporting protocol for KNX
FALSE
Appendant operation agent (Ex ib)
FALSE
Degree of protection (IP)
IP20
Supporting protocol for CAN
FALSE
Supporting protocol for INTERBUS
FALSE
IO link master
FALSE
Output voltage
TRUE
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Output signal configurable
TRUE
Resolution of the analogue outputs
12
Supporting protocol for MODBUS
FALSE
Suitable for safety functions
FALSE
Output, current
TRUE
Supporting protocol for Data-Highway
FALSE
Resolution of the analogue inputs
16
Number of analogue outputs
1
Supply voltage DC
20.4…28.8 V
Rack-assembly possible
FALSE
Number of analogue inputs
2
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
TRUE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
FALSE

Datasheet for TPRAN2X1 - Analog IO module, TeSys island, 2 inputs, 1 output - Schneider Electric - TPRAN2X1
