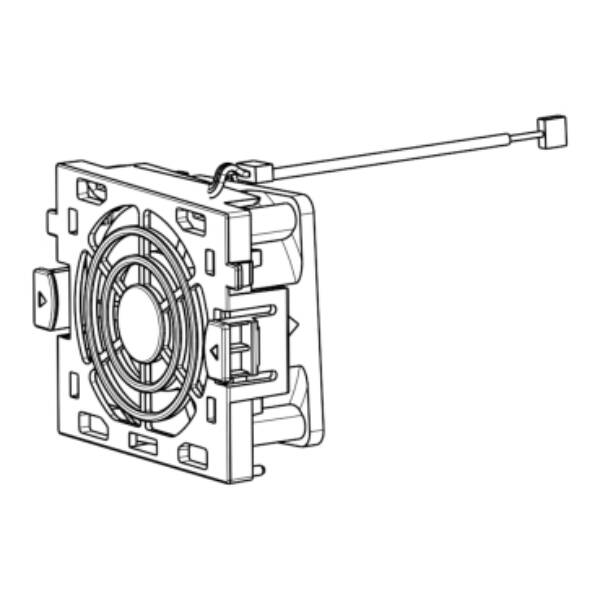

This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 0.75kw to 5.5kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7.5cm (Height) and weighs 220g. This power fan is compatible with ATV630U07M3 to U40M3, ATV630U07N4 to U55N4, ATV650U07N4 to U55N4, ATV650U07N4E to U55N4E, ATV930U07M3 to U40M3, ATV930U07N4 to U55N4, ATV950U07N4 to U55N4, ATV950U07N4E to U55N4E. This kit includes 1 power fan for IP21 and IP55 drive, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Brand

Schneider Electric

Range

Altivar Process ATV600

Part No

VX5VPS1001

Weight (kg)

0.25 kg

Type

Altivar Process ATV600

Suitable for electronic control

TRUE

Suitable for transformer control

FALSE

Model

Other

Connection voltage

380…480 Volt

Electrical connection

Other

Degree of protection (IP)

IP21

Colour

Other

Material

Plastic

Frequency

50/60 Hz

Swivelling

FALSE

Collapsible

FALSE

With thermal overload protection

TRUE

Portable

FALSE
