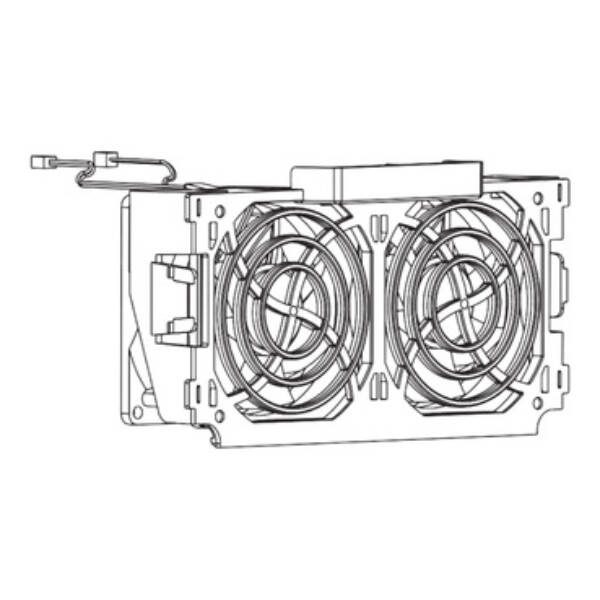

This product is a wear part for Drive Altivar 340, Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 7.5kw to 22kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17.2cm (width) x 23.3cm (Length) x 7.5cm (Height) and weighs 528g. This power fan is compatible with ATV340D11N4 to D22N4, ATV630U75M3 to D11M3, ATV630D15N4 to D22N4, ATV650D15N4 to D22N4, ATV650D15N4E to D22N4E, ATV930U75M3 to D11M3, ATV930D15N4 to D22N4, ATV950D15N4 to D22N4, ATV950D15N4E to D22N4E. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. IoT-ready variable speed drives for safety and heavy duty applications from 0.75 to 75kW (1 to 100Hp). Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Brand

Schneider Electric

Range

Altivar Process ATV600

Part No

VX5VPS3001

Weight (kg)

0.52 kg

Type

Altivar Process ATV600

Suitable for electronic control

TRUE

Suitable for transformer control

FALSE

Connection voltage

380…480 Volt

Model

Other

Electrical connection

Other

Degree of protection (IP)

IP21

Colour

Other

Material

Plastic

Frequency

50/60 Hz

Swivelling

FALSE

Collapsible

FALSE

With thermal overload protection

TRUE

Portable

FALSE
