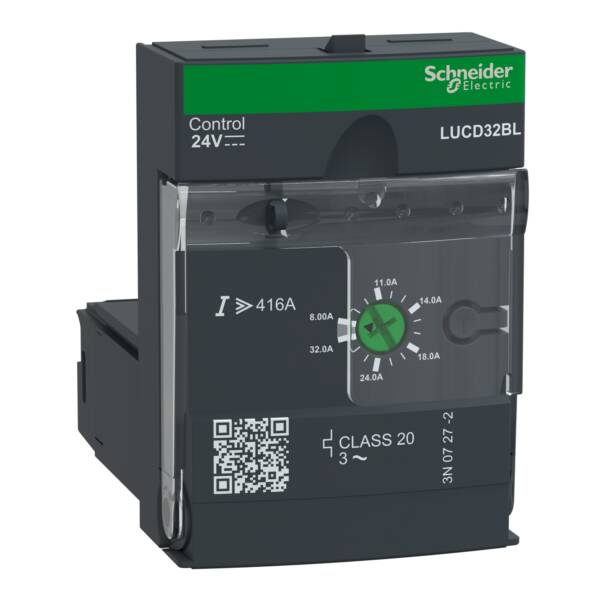

Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V DC - Schneider Electric - LUCD32BL
Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V DC - Schneider Electric - LUCD32BL

LUCD32BL

Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V DC - Schneider Electric - LUCD32BL

Control

List Price £192.85 +VAT

Our Price £144.64 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCD32BL
Weight (kg)
0.12 kg
Type
TeSys U
Type of motor protection
Electronic release
Number of poles
3
Initial value of the undelayed short-circuit release - setting range
416
Rated control supply voltage Us at DC
24 V
Voltage type for actuating
DC
End value adjustment range undelayed short-circuit release
416
With ground fault protection function
TRUE
Overload release current setting
8…32 A
Rated permanent current Iu
32
Short-circuit release function
Undelayed

Datasheet for LUCD32BL - Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V DC - Schneider Electric - LUCD32BL
