Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V AC - Schneider Electric - LUCD32B

Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V AC - Schneider Electric - LUCD32B

LUCD32B

Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V AC - Schneider Electric - LUCD32B

Control

~~List Price £170.62 +VAT~~

Our Price £127.97 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

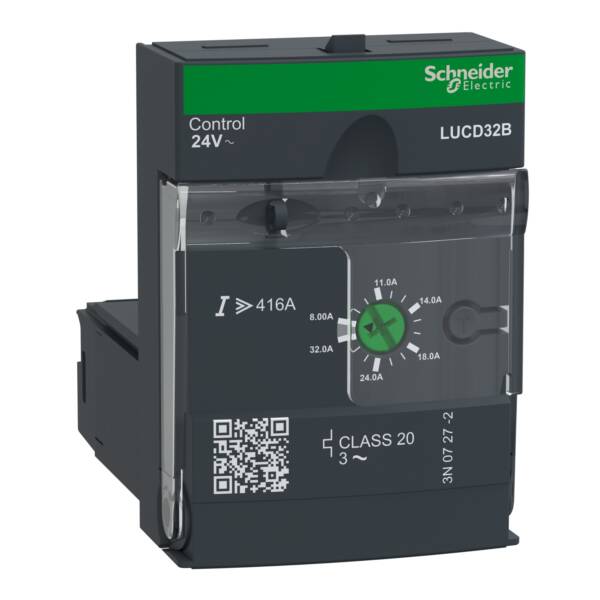

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCD32B
Weight (kg): 0.13 kg
Type: TeSys U
Width: 45
With ground fault protection function: TRUE
Voltage type (supply voltage): AC
Overload release current setting: 8…32 Ampere
Rated permanent current Iu: 32
Operating voltage AC 50 Hz: 690 Volt
Depth: 60
Operating voltage AC 60 Hz: 690 Volt
Short-circuit release function: Undelayed
Type of motor protection: Electronic release
Number of poles: 3
Voltage type (operating voltage): AC
External power supply required: TRUE
Height: 66

Datasheet for LUCD32B - Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V AC - Schneider Electric - LUCD32B

Download
