LUCD32FU

Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 110-240V AC/DC - Schneider Electric - LUCD32FU

Automation

~~List Price £177.48 +VAT~~

Our Price £133.11 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

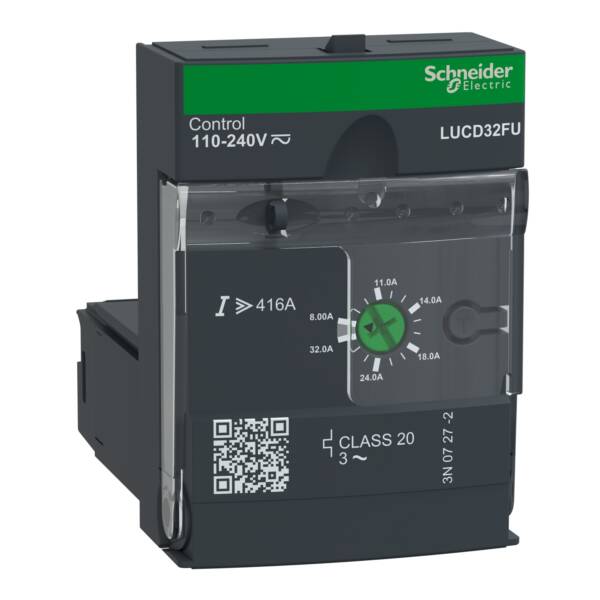

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCD32FU
Weight (kg): 0.13 kg
Type: TeSys U
