LUCB32FU
LUCB32FU

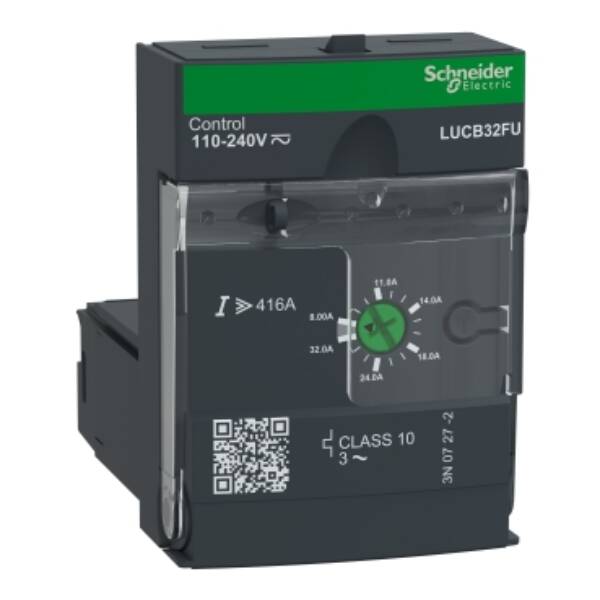

Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 10, coil 110-240V AC/DC - Schneider Electric - LUCB32FU
Control
List Price £172.75
+VAT
Our Price £129.56
+VAT
SAVE 26% OFF List Price
Add to basket
Fast Track Delivery Product
Get in touch
Product description
Specifications
Downloads
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCB32FU
Weight (kg)
0.13 kg
Type
TeSys U
Type of motor protection
Electronic release
Rated control supply voltage Us at AC 50HZ
110…240 V
Number of poles
3
Rated control supply voltage Us at AC 60HZ
110…240 V
Rated control supply voltage Us at DC
110…220 V
Initial value of the undelayed short-circuit release - setting range
416
Voltage type for actuating
AC/DC
End value adjustment range undelayed short-circuit release
416
With ground fault protection function
TRUE
Overload release current setting
8…32 A
Rated permanent current Iu
32
Short-circuit release function
Undelayed
Datasheet for LUCB32FU - Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 10, coil 110-240V AC/DC - Schneider Electric - LUCB32FU
Download
