LUCD12BL
LUCD12BL

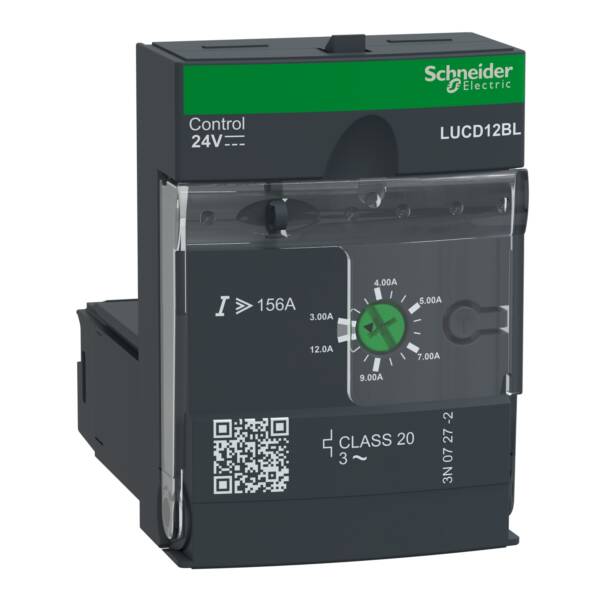

Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 20, coil 24V DC - Schneider Electric - LUCD12BL
Control
List Price £118.32
+VAT
Our Price £88.74
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Product description
Specifications
Downloads
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCD12BL
Weight (kg)
0.13 kg
Type
TeSys U
Datasheet for LUCD12BL - Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 20, coil 24V DC - Schneider Electric - LUCD12BL
Download
