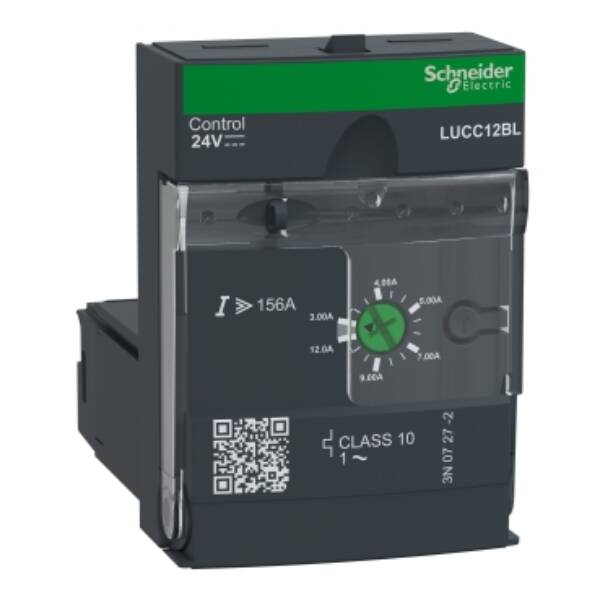

LUCC12BL

Advanced control unit, TeSys U, 3-12A, 1P motors, protection & diagnostic, class 10, coil 24V DC - Schneider Electric - LUCC12BL

Control

~~List Price £107.67 +VAT~~

Our Price £80.75 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 2.2kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCC12BL
Weight (kg): 0.12 kg
Type: TeSys U
Type of electrical connection of main circuit: Screw connection
Supporting protocol for SERCOS: FALSE
Rated operation power at AC-3, 400 V: 2.2
Rated conditional short-circuit current, type 1, 480 Y/277 V: 3
Rated conditional short-circuit current, type 2, 230 V: 3
Rated operation current Ie: 3
Rated conditional short-circuit current, type 1, 600 Y/347 V: 12
External reset possible: FALSE
Overload release current setting: 3…12 A
Ambient temperature, upper operating limit: 70
With transformer: FALSE
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Rated operation current at AC-3, 400 V: 12
Rated conditional short-circuit current, type 2, 400 V: 12
Temperature compensated overload protection: TRUE
Voltage type for actuating: DC
Height: 66
Supporting protocol for INTERBUS-Safety: FALSE
Width: 45
Release class: CLASS 10
Supporting protocol for AS-Interface Safety at Work: FALSE
Coordination class according to IEC 60947-4-3: Class 2
Depth: 60
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Supporting protocol for SafetyBUS p: FALSE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Kind of motor starter: Other
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: FALSE
Degree of protection (IP): IP40
Supporting protocol for CAN: FALSE
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: TRUE
Supporting protocol for MODBUS: FALSE
Supporting protocol for Data-Highway: FALSE
Suitable for emergency stop: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
With fuse: FALSE
With short-circuit release: TRUE
Supporting protocol for SUCONET: FALSE
Rated control supply voltage Us at DC: 24 V
