Advanced control unit, TeSys U, 1.25-5A, 1P motors, protection & diagnostic, class 10, coil 110-240V AC/DC - Schneider Electric - LUCC05FU
Advanced control unit, TeSys U, 1.25-5A, 1P motors, protection & diagnostic, class 10, coil 110-240V AC/DC - Schneider Electric - LUCC05FU

LUCC05FU

Advanced control unit, TeSys U, 1.25-5A, 1P motors, protection & diagnostic, class 10, coil 110-240V AC/DC - Schneider Electric - LUCC05FU

Control

List Price £88.74 +VAT

Our Price £66.56 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

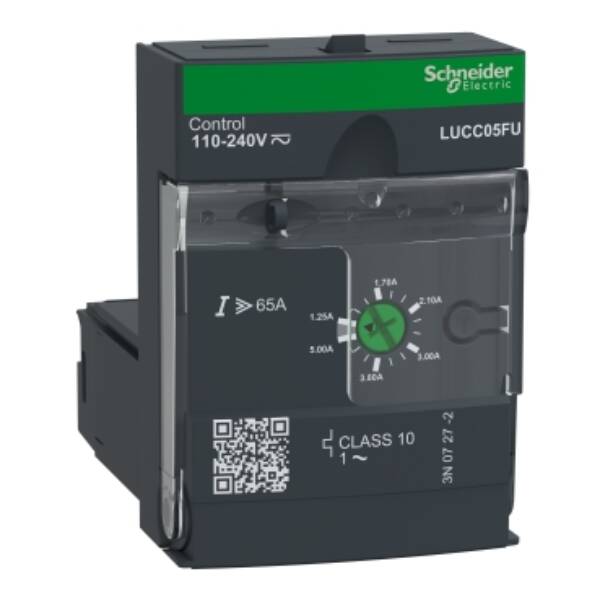

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 0.55kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCC05FU
Weight (kg)
0.12 kg
Type
TeSys U
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 400 V
0.55
Rated conditional short-circuit current, type 1, 480 Y/277 V
1.25
Supporting protocol for SERCOS
FALSE
Rated conditional short-circuit current, type 2, 230 V
1.25
Rated operation current Ie
1.25
Rated conditional short-circuit current, type 1, 600 Y/347 V
5
Overload release current setting
1.25…5 A
Ambient temperature, upper operating limit
70
External reset possible
FALSE
With transformer
FALSE
Rated operation current at AC-3, 400 V
5
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rated conditional short-circuit current, type 2, 400 V
5
Temperature compensated overload protection
TRUE
Voltage type for actuating
AC/DC
Height
66
Supporting protocol for INTERBUS-Safety
FALSE
Width
45
Release class
CLASS 10
Supporting protocol for AS-Interface Safety at Work
FALSE
Coordination class according to IEC 60947-4-3
Class 2
Depth
60
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Kind of motor starter
Other
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Degree of protection (IP)
IP40
Supporting protocol for CAN
FALSE
Supporting protocol for INTERBUS
FALSE
Rated control supply voltage Us at AC 50HZ
110…240 V
Rated control supply voltage Us at AC 60HZ
110…240 V
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for MODBUS
FALSE
Supporting protocol for Data-Highway
FALSE
Suitable for emergency stop
FALSE
Supporting protocol for LON
FALSE
With fuse
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
With short-circuit release
TRUE
Rated control supply voltage Us at DC
110…220 V
