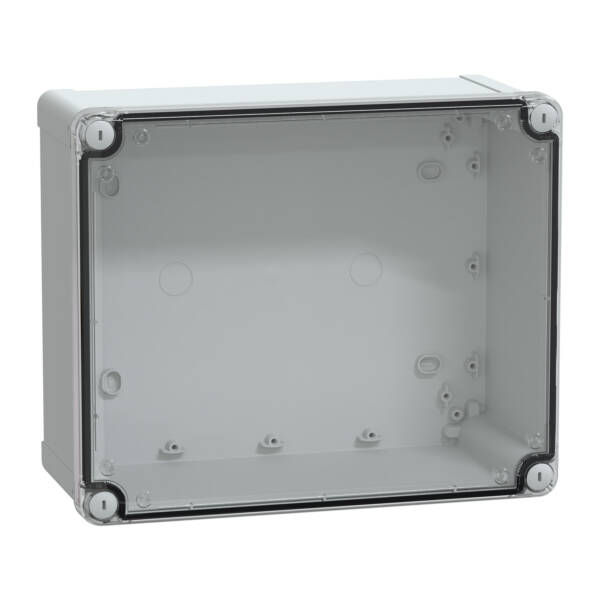

"This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications" "The box has a height, width, and depth of 291 mm, 241 mm, and 128 mm, respectively" "The internal dimensions of the box are 275 mm x 225 mm x 120 mm" "The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures" "The box comes in a grey (RAL 7035) and transparent color" "It has a high transparent cover that is fixed with captive flat screws" "The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions" "It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard" "The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262)" "It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance" "The net weight of the box is 1,16 kg"

Brand

Schneider Electric

Range

Enclosures

Part No

NSYTBS292412HT

Weight (kg)

1.16 kg

Type

Enclosures

Surface protection

Untreated

With mounting plate

FALSE

Type of cover

Cover

Extension possible

FALSE

Suitable for lightning protection

TRUE

RAL-number

7035

Height

291

Type of door

None

Degree of protection (IP)

IP66

Transparent cover/door

TRUE

Internal depth

120

Cover model

Closed

Plate thickness cabinet

2.4

Plate thickness door/cover

2.8

Colour

Grey

Circuit integrity

None

Width

241

Suitable for outdoor use

TRUE

Material housing

Plastic

Mounting method

Surface mounted (plaster)

Protection class

II

Depth

128

With lock

FALSE

Impact strength

IK07
