ABS box IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40 - Schneider Electric - NSYTBS241912HT
ABS box IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40 - Schneider Electric - NSYTBS241912HT

NSYTBS241912HT

ABS box IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40 - Schneider Electric - NSYTBS241912HT

Enclosures

List Price £30.02 +VAT

Our Price £22.52 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days

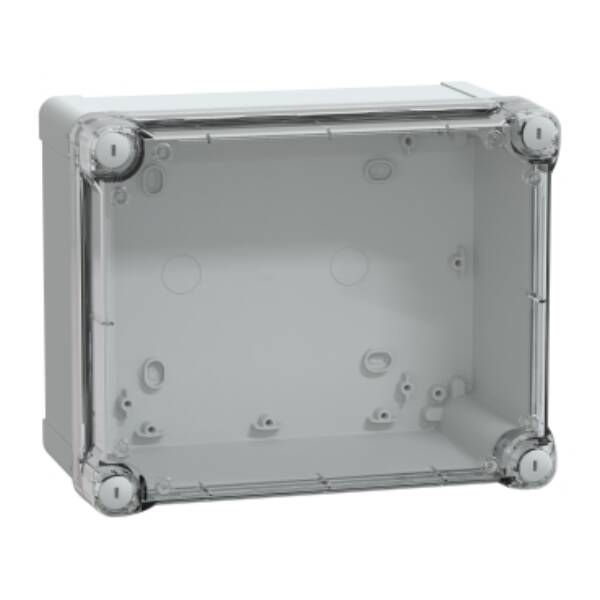

"This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications" "The box has a height, width, and depth of 241 mm, 194 mm, and 127 mm, respectively" "The internal dimensions of the box are 225 mm x 175 mm x 120 mm" "The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures" "The box comes in a grey (RAL 7035) color with a high transparent cover" "It has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions" "It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard" "The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262)" "It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance" "The cover is fixed with plastic screws and can be removed by captive screws" "The box has a net weight of 0,82 kg"
Brand
Schneider Electric
Range
Enclosures
Part No
NSYTBS241912HT
Weight (kg)
0.82 kg
Type
Enclosures

Datasheet for NSYTBS241912HT - ABS box IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40 - Schneider Electric - NSYTBS241912HT
