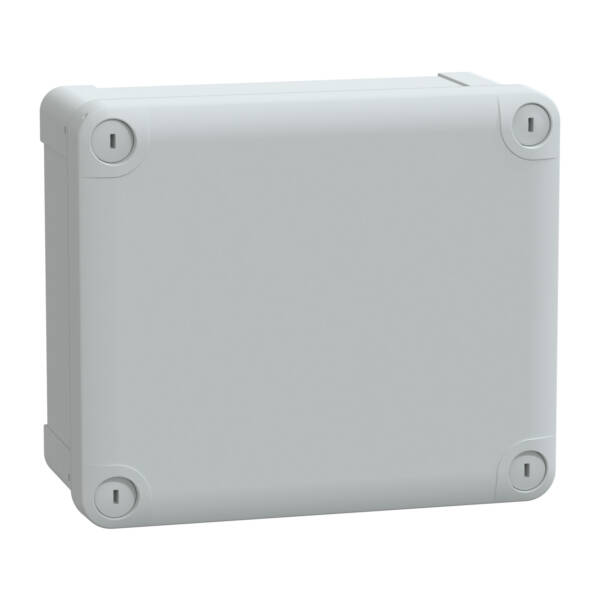

ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20 - Schneider Electric - NSYTBS19168

ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20 - Schneider Electric - NSYTBS19168

NSYTBS19168

ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20 - Schneider Electric - NSYTBS19168

Enclosures

~~List Price £20.42 +VAT~~

Our Price £15.32 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

ABS industrial box for PanelSeT TBS. Multi purpose. 192 x 164 x 87 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.

Brand: Schneider Electric
Range: Enclosures
Part No: NSYTBS19168
Weight (kg): 0.45 kg
Type: Enclosures
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
Suitable for lightning protection: TRUE
RAL-number: 7035
Height: 192
Type of door: None
Internal depth: 80
Transparent cover/door: FALSE
Degree of protection (IP): IP66
Cover model: Closed
Plate thickness cabinet: 2.1
Plate thickness door/cover: 2.2
Colour: Grey
Width: 164
Circuit integrity: None
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 87
With lock: FALSE
Impact strength: IK07

Datasheet for NSYTBS19168 - ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20 - Schneider Electric - NSYTBS19168

Download
