ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 - Schneider Electric - NSYTBS191610HT

ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 - Schneider Electric - NSYTBS191610HT

NSYTBS191610HT

ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 - Schneider Electric - NSYTBS191610HT

Enclosures

~~List Price £23.88 +VAT~~

Our Price £17.91 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

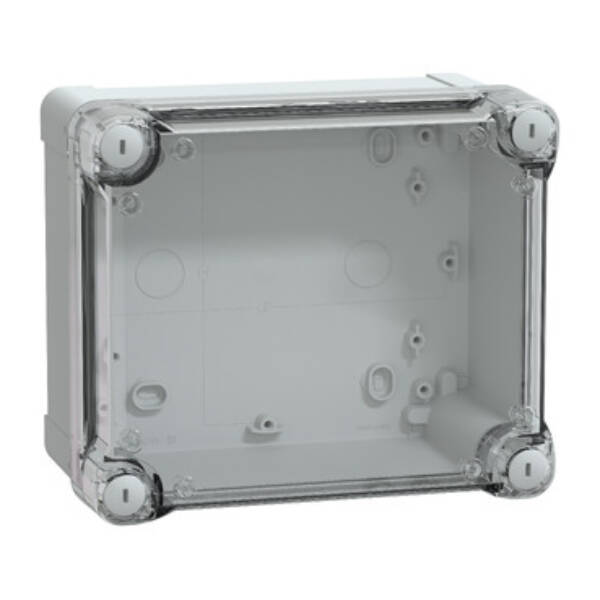

PanelSeT TBS industrial ABS box with transparent cover H40. Int is 175 x 150 x 100 mm. Ext is 193 x 164 x 105 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Brand: Schneider Electric
Range: Enclosures
Part No: NSYTBS191610HT
Weight (kg): 0.54 kg
Type: Enclosures
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
Suitable for lightning protection: TRUE
RAL-number: 7035
Height: 192
Type of door: None
Internal depth: 100
Transparent cover/door: TRUE
Degree of protection (IP): IP66
Cover model: Closed
Plate thickness cabinet: 2.1
Plate thickness door/cover: 2.2
Colour: Grey
Width: 164
Circuit integrity: None
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 105
With lock: FALSE
Impact strength: IK07

Datasheet for NSYTBS191610HT - ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 - Schneider Electric - NSYTBS191610HT

Download
