ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20 - Schneider Electric - NSYTBS19128

ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20 - Schneider Electric - NSYTBS19128

NSYTBS19128

ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20 - Schneider Electric - NSYTBS19128

Enclosures

~~List Price £14.87 +VAT~~

Our Price £11.15 +VAT

SAVE 26% OFF List Price

Fast Track Delivery Product

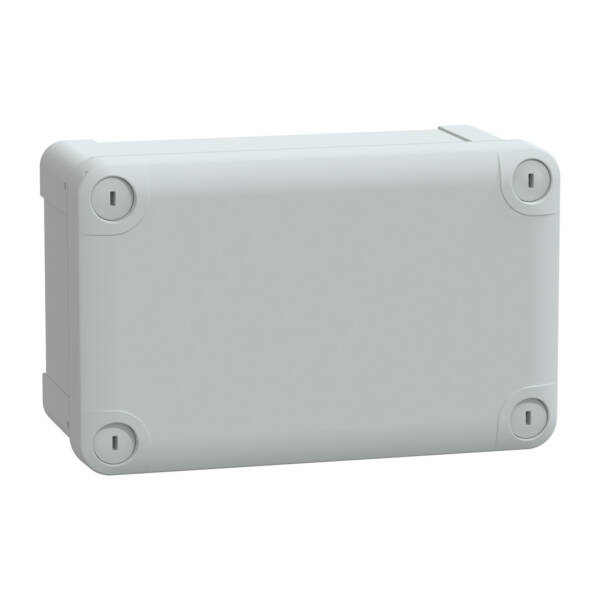

PanelSeT TBS industrial ABS box with opaque cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Brand: Schneider Electric
Range: Enclosures
Part No: NSYTBS19128
Weight (kg): 0.34 kg
Type: Enclosures
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
Suitable for lightning protection: TRUE
RAL-number: 7035
Height: 192
Type of door: None
Transparent cover/door: FALSE
Internal depth: 80
Degree of protection (IP): IP66
Cover model: Closed
Plate thickness cabinet: 2.1
Plate thickness door/cover: 2.2
Colour: Grey
Circuit integrity: None
Width: 121
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 87
With lock: FALSE
Impact strength: IK07

Datasheet for NSYTBS19128 - ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20 - Schneider Electric - NSYTBS19128

Download
