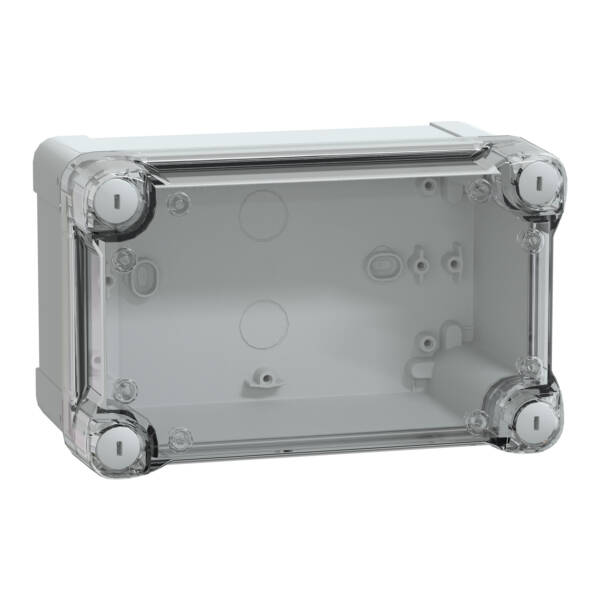

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 192 mm, 121 mm, and 105 mm, respectively The internal dimensions of the box are 175 mm x 105 mm x 100 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact, corrosion and low and high temperatures It is made of 45% of post-industrial recycled plastic (ABS) content. The box comes in a grey (RAL 7035) and high transparent cover The cover is fixed with captive flat screws located outside sealed area and easily openable with a flat screwdriver The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262) It can be used in ambient air temperature ranging from -25 to 60°C without affecting its performance The box is certified by TÜV and has a class II electrical insulation that prevents electric shocks This electrical box is sold in a set of 2

Brand

Schneider Electric

Range

Enclosures

Part No

NSYTBS191210HT

Weight (kg)

0.45 kg

Type

Enclosures

Surface protection

Untreated

With mounting plate

FALSE

Type of cover

Cover

Extension possible

FALSE

Suitable for lightning protection

FALSE

RAL-number

7035

Height

192

Type of door

None

Degree of protection (IP)

IP66

Internal depth

100

Transparent cover/door

TRUE

Cover model

Closed

Plate thickness cabinet

2.1

Plate thickness door/cover

2.2

Colour

Grey

Circuit integrity

None

Width

121

Suitable for outdoor use

TRUE

Material housing

Plastic

Mounting method

Surface mounted (plaster)

Protection class

II

Depth

105

With lock

FALSE

Impact strength

IK07
