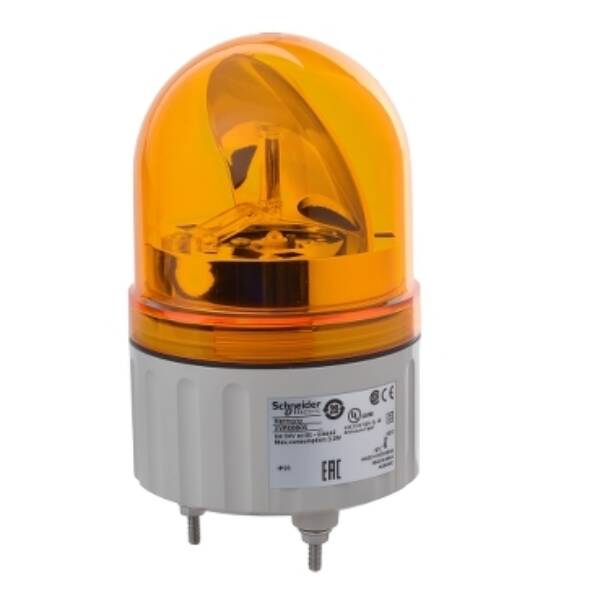

This orange beacon is part of the range of rotating beacons Harmony XVR diameter 84mm. It is supplied complete and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23 and (IP 65 with accessories). It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
Brand
Schneider Electric
Range
Harmony XVR
Part No
XVR08B05
Weight (kg)
0.39 kg
Type
Harmony XVR
Colour of lamp hood
Orange
Degree of protection (IP)
IP65
Degree of protection (NEMA)
Other
Type of current
AC/DC
Nominal voltage
24
Electricity consumption
0.125
Lamp type
LED
Lamp holder
Other
Optics
Mirror
Datasheet for XVR08B05 - 84mm Rotating Mirror Orange 24VAC-DC - Schneider Electric - XVR08B05
