HMISTO715

4.3" wide screen touch panel, RS-232/485 RJ45 - Schneider Electric - HMISTO715

Automation

~~List Price £359.49 +VAT~~

Our Price £305.57 +VAT

SAVE 15% OFF List Price

Estimated delivery between 7-10 working days

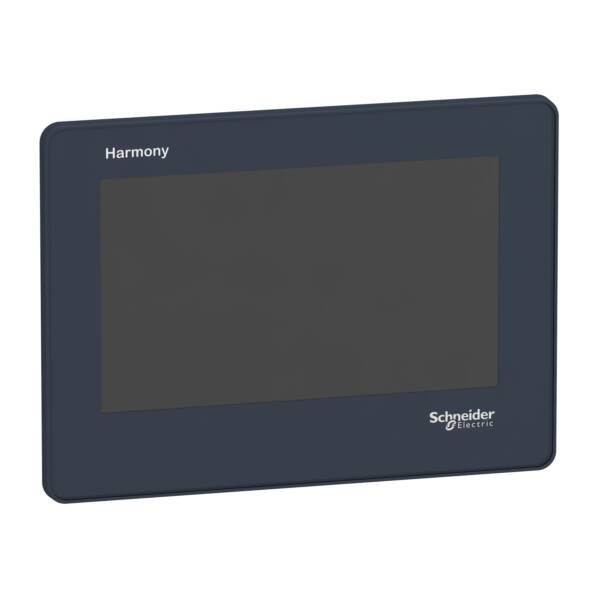

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Brand: Schneider Electric
Range: Harmony STO & STU
Part No: HMISTO715
Weight (kg): 0.53 kg
Type: Harmony STO & STU
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
Useful project memory/user memory: 128
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
With recipes: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP65/IP67
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Supporting protocol for DeviceNet Safety: FALSE
Touch technology: Other
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: 0…50 °C
Screen diagonal: 3.4
Built-in depth: 36.5
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Supporting protocol for PROFIBUS: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for TCP/IP: TRUE
Number of pixels, horizontal: 200
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
With colour display: TRUE
IO link master: FALSE
Number of colours of the display: 3
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: TRUE
Width of the front: 116.5
Supporting protocol for Data-Highway: FALSE
Height of the front: 77.5
Supply voltage DC: 24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 80

Datasheet for HMISTO715 - 4.3" wide screen touch panel, RS-232/485 RJ45 - Schneider Electric - HMISTO715

Download
