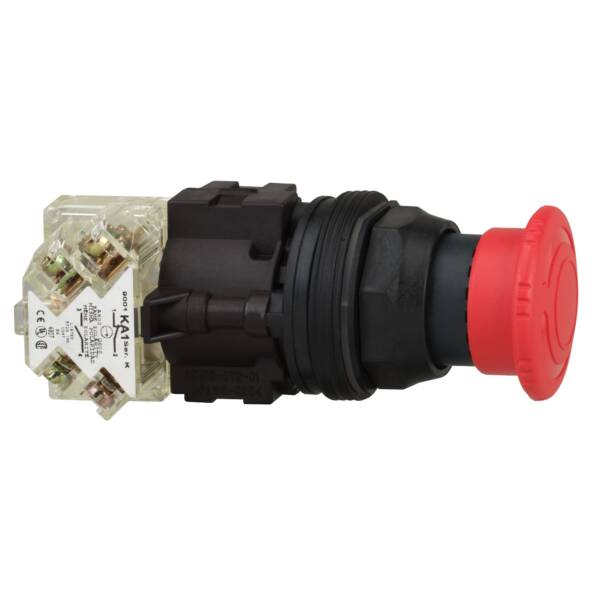

This Harmony 9001SK, emergency stop / shutdown 30mm mushroom head modular red push button has 2 positions, operates with a latched turn to release mechanism. It has a double insulated plastic bezel and has 2 x NO + 2 x NC contacts and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is connected with simple screw-clamp connections. It is easily installed into a standard 30mm diameter cut-outs. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 SK

Part No

9001SKR16H2

Weight (kg)

0.14 kg

Type

Harmony 9001 SK

Degree of protection (IP)

IP66

With lighting

FALSE

Degree of protection (NEMA)

Other

Connection type auxiliary circuit

Screw connection

Hole diameter

31

Diameter cap

40

Mounting method

Surface mounting

Unlocking method

Turn-release
