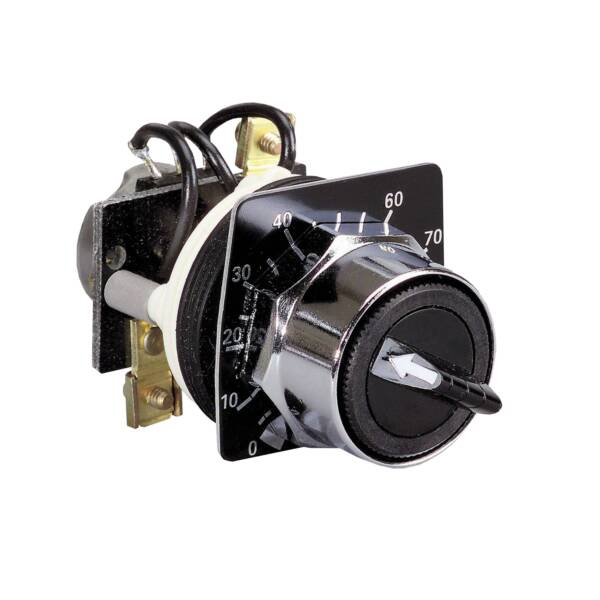

This product is part of the Harmony 9001K range, an offer of potentiometers. This potentiometer is supplied with an operator and dial plate. The power rating of this variable resistor is 2W, resistance rating is 2.5k Ohms and maximum voltage is 300V AC. It has 1 flush pushbutton, black 1 normally open, white down arrow marking and 1 flush pushbutton, white 1 normally open, black up arrow marking. It is furnished with solder terminals for electrical connection. It is a NEMA 4/13 rated product. The legend plate is made of metal. Its dimensions are 42mm (width) x 89mm (depth). It is suitable for use in automotive, machine tools, crane and hoist, food and beverage, material handling, petrochemical, wastewater treatment, metallurgy and industrial applications. It is easily installed into 1/16inch to 3/16inch diameter panel cut outs. This robust range offers long-term reliability in heavy duty industrial applications and extreme environments.

Brand

Schneider Electric

Range

Harmony 9001 K

Part No

9001K2106

Weight (kg)

0.13 kg

Type

Harmony 9001 K

Degree of protection (IP)

Other

Number of revolutions

0…3000000

Type of electric connection

Other

Resistance

2500

Degree of protection (NEMA)

Other

Hole diameter

30

Power consumption

2
