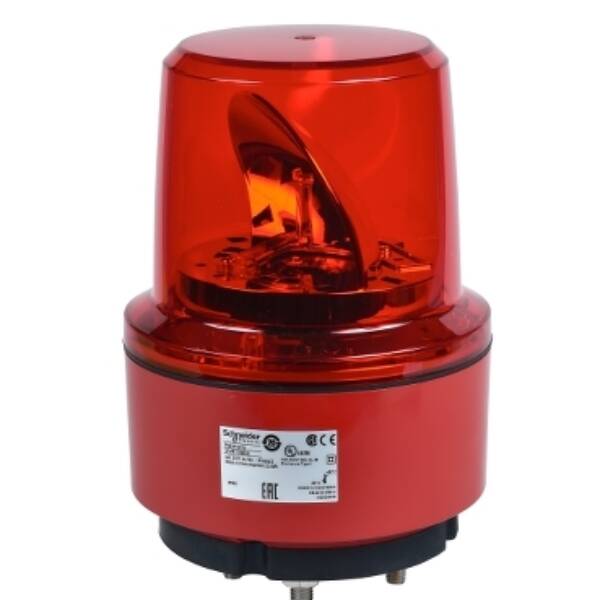

This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled without a buzzer. It features a super bright red LED light source and can be supplied with 24V DC. Its super-bright LED provides good illuminating power and a long service life (reduced maintenance time). It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, thanks to its IP66 rating. It provides a PC (polycarbonate) globe and an ABS (acrylonitrile-butadiene-styrene) body part. It weighs 800g, has a diameter of 130mm, and is 179mm high. It is designed for long-distance signaling applications, mainly in the iron and steel industry, industrial handling vehicles, or safety applications. It is UL and CSA certified and holds CE marking. It is designed to be mounted on a horizontal surface, thanks to its base, which is fitted with 3 feet (bolds and nuts provided). The Harmony XVR pre-wired rotating/flashing beacons offer multiple lighting patterns in a unique motor-less design, combining modern aesthetics and robustness.

Brand

Schneider Electric

Range

Harmony XVR

Part No

XVR13B04

Weight (kg)

1.21 kg

Type

Harmony XVR

Colour of lamp hood

Red

Degree of protection (IP)

IP66

Type of current

DC

Nominal voltage

24

Lamp type

LED

Electricity consumption

0.125

Optics

Mirror
