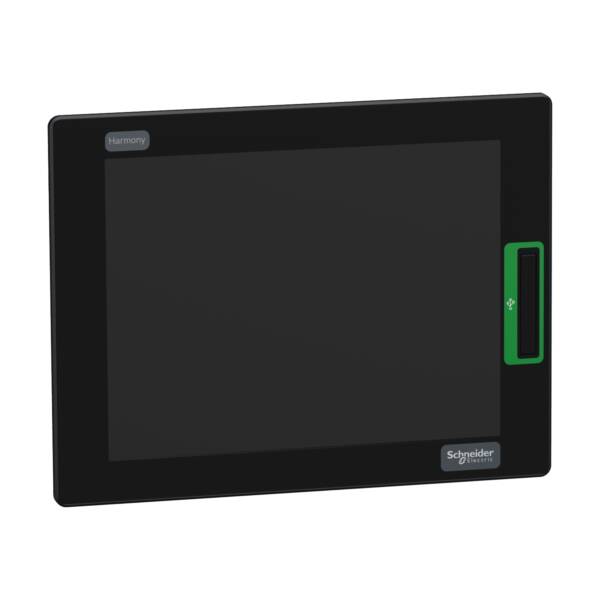

This industrial display belongs to the Schneider Electric's Harmony HMI P6 range. This 2 point multi-touch resistive HMIDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours. This is a 12.1 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA). There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 156VAMax. (AC model) and 136WMax. (DC model), with P6 Standard Modular Box is 77VAMax. (AC model) and 68WMax. (DC model). Its dimensions are 315mm (width) x 241mm (height) x 32mm (depth) and weighs 2.40Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This display when combined with any of the Harmony P6 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 ]× 100 mount on the rear of Box PC. The stylish Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.

Brand

Schneider Electric

Range

Harmony P6

Part No

HMIDM6600TM

Weight (kg)

2.90 kg

Type

Harmony P6

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

1

Radio standard GPRS

FALSE

Height

241

Supporting protocol for INTERBUS-Safety

FALSE

Width

315

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

32

Construction type housing

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Operation temperature

-20…60 °C

Supporting protocol for SafetyBUS p

FALSE

Suitable for other operating system

FALSE

Voltage type of supply voltage

DC

With other storage media

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

With floppy disc drive

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Front build in possible

TRUE

Supporting protocol for KNX

FALSE

With graphic card

FALSE

With hard disc

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP67

With sound card

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

With optical drive

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Rack-assembly possible

FALSE

Preinstalled operating system

None

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Degree of protection (NEMA)

4X
