Lexium SCARA

Ultra-compact, high-speed industrial robots designed to maximize productivity and optimize operational costs

Part of Lexium

Deployable across several industries including battery manufacturing, electronics, warehousing, and consumer packaging goods, the Lexium SCARA robot offers quick and accurate movements. This makes it ideal for use in manufacturing and assembly processes including machine loading and unloading, pick-and-place, packaging and material handling applications

Features

Maximum workspace, smallest footprint

  • Four axis manipulation.
  • Arm length up to 700mm.
  • z-stroke up to 300mm
  • Max. payload capacity: 6 kg (13.23 lb)
  • Position repeatability (ISO 9283) of ± 0,02 mm ( 0.0007 in)
  • Weight: 27 kg

Simple compact all-in-one Solution

  • Fully embedded: built-in controller, servo drives, communication and I/O.
  • Floor-mounting robots.

Benefits

Maximum workspace, smallest footprint

  • 40% longer arm stroke and smaller footprint than any other product in its class, for maximum workspace access in crowded spaces.

Simple compact all-in-one solution

  • With integrated motors and a built-in controller, it simplifies installation, reduces wiring, and saves space due to shorter cable runs.

Fully seamless integration

  • Easy integration into unified machine control systems, for multi-robots synchronization and collaborative data flows.

Easy upgrade to IP65 with accessories

  • Easy upgrade with specific accessory kits to easily maintain IP65 protection, offering flexibility and cost efficiency.

The Range



Schneider electric lxmrsp0650200 001 1920x1920

LXMRSP0650200

Scara robot, Lexium Scara, 500mm arm, 200mm

DATASHEET

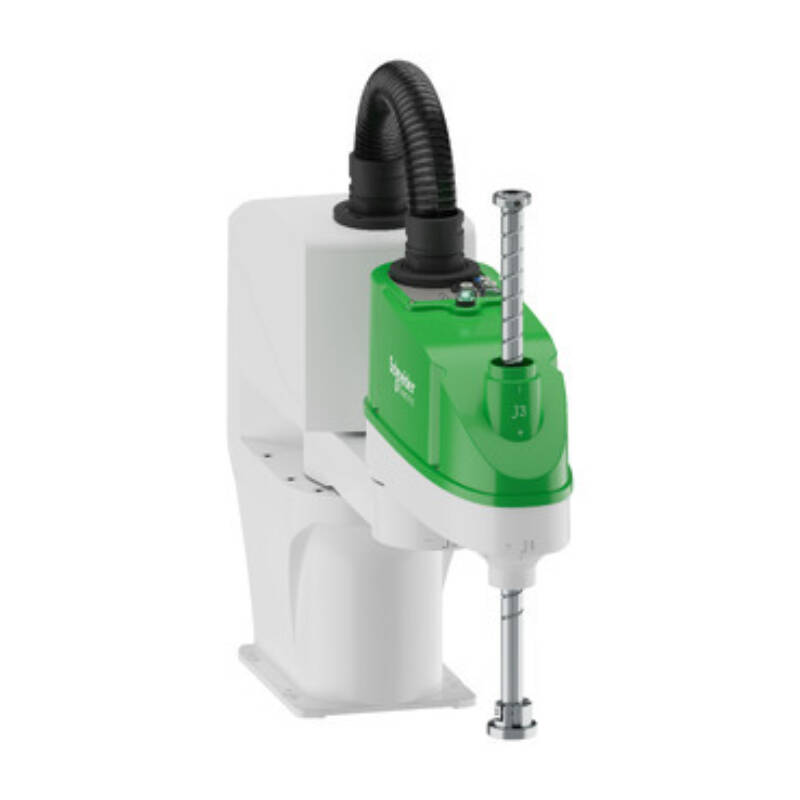

LXMRSP0650300 main 369

LXMRSP0650300

Scara robot, Lexium Scara, 500mm arm, 300mm

DATASHEET

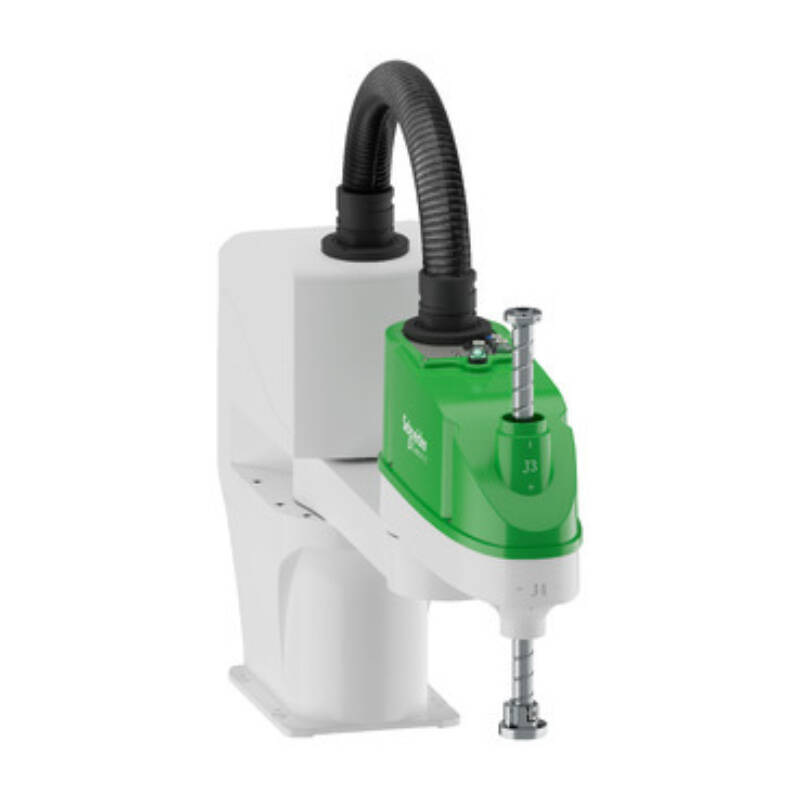

LXMRSP0660200 main 369

LXMRSP0660200

Scara robot, Lexium Scara, 600mm arm, 200mm

DATASHEET
LXMRSP0660300 main 369

LXMRSP0660300

Scara robot, Lexium Scara, 600mm arm, 300mm

DATASHEET
LXMRSP0660300 main 369

LXMRSP0670200

Scara robot, Lexium Scara, 700mm arm, 200mm

DATASHEET
LXMRSP0660300 main 369

LXMRSP0670300

Scara robot, Lexium Scara, 700mm arm, 300mm

DATASHEET

Precision at Production Speed...

Ready to boost speed and precision? Discover how Schneider Electric Lexium SCARA Robots can help you increase throughput, improve accuracy, and automate with confidence.
