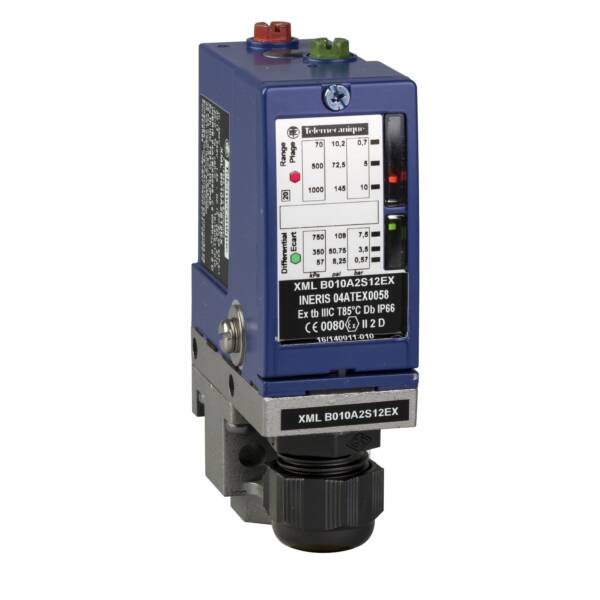

This product is part of the ATEX D range, an offer of pressure switches for explosive atmospheres. This pressure switch is a form of switch that closes an electrical contact when a certain set fluid pressure has been reached on its input. It offers 1 change over, snap action contacts and off at 10 bar pressure setting value. It is a pressure switch with an approximately adjustable switching point on falling pressure of 0.13bar to 9.15bar and rising pressure of 0.7bar to 10bar. It is furnished with 4 terminals for electrical connection and G 1/4 (female) conforming to ISO 228 for fluid connection. It is an IP66 and NEMA 1 rated product. It has a diaphragm actuator which can be operated from any position, adjustable differential scale for internal settings and regulation of 2 thresholds. Its mechanical durability of about 5 million operating cycles. The enclosure is made of zinc alloy, silver plated contacts. Its dimensions are 35mm (Width) x 75mm (Depth) x 113mm (Height). It is suitable for ATEX D product specific applications. This product is certified by INERIS and IEC-Ex INE 17.0019. It meets EN/IEC 60079-0 and EN/IEC 60079-31 standards. A wide range of compact and robust inductive proximity sensors and limit switches and pressure control sensors designed to operate in hazardous environments, mainly dust zone 21 and 22. Inductive proximity sensors, limit switches, pressure control sensors for explosive atmospheres, OsiSense ATEX D.

Brand

Telemecanique Sensors

Range

Nautilus ATEX D

Part No

XMLB010A2S12EX

Weight (kg)

0.79 kg

Type

Nautilus ATEX D
