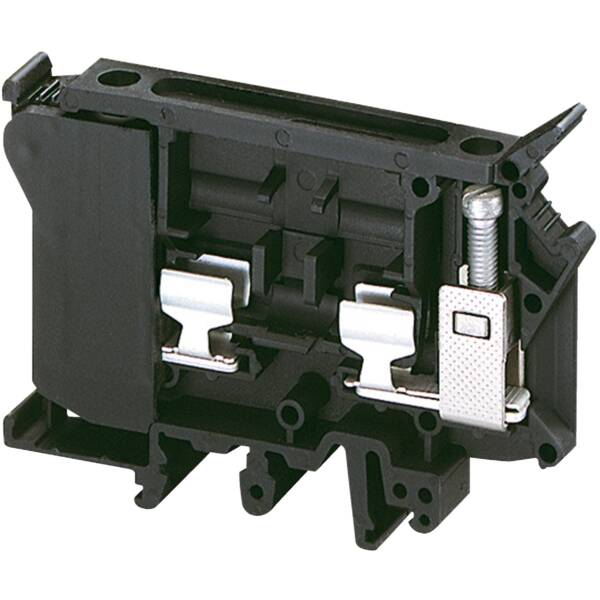

NSYTRV42SF6

SCREW TERMINAL, FUSED, FOR 6,3X32MM CARTRIDGE FUSE, 2 PTS, 6MM², BLAC - Schneider Electric - NSYTRV42SF6

Enclosures

~~List Price £14.91 +VAT~~

Our Price £11.18 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA/UL. It has black surface treatment. Mounting by clip-on and sideways connection with 6.3x32 mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRV42SF6
Weight (kg): 0.03 kg
Type: Linergy TR terminals blocks
Number of levels: 1
Colour: Black
Length: 79
Type of electrical connection 2: Screw connection
Rated voltage: 500
Type of electrical connection 1: Screw connection
Type of fuse insert: G-fuse 6.3x32 mm
Type of indication element for defect indication: None
Inflammability class of insulation material acc. with UL94: V0
Type of fuse holder: Swivelling
Mounting method: DIN rail (top hat rail) 35 mm
Height at lowest possible mounting height: 60.5
Connectable conductor cross section solid-core: 0.5…16 mm²
Width/grid dimension: 10.2
Closing plate required: FALSE
Connection position: Sideways
Connectable conductor cross section fine-strand with cable end sleeve: 0.2…4 mm²
Connectable conductor cross section multi-wired: 0.5…16 mm²
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Connectable conductor cross section fine-strand without cable end sleeve: 0.2…4 mm²
Rated current In: 10
