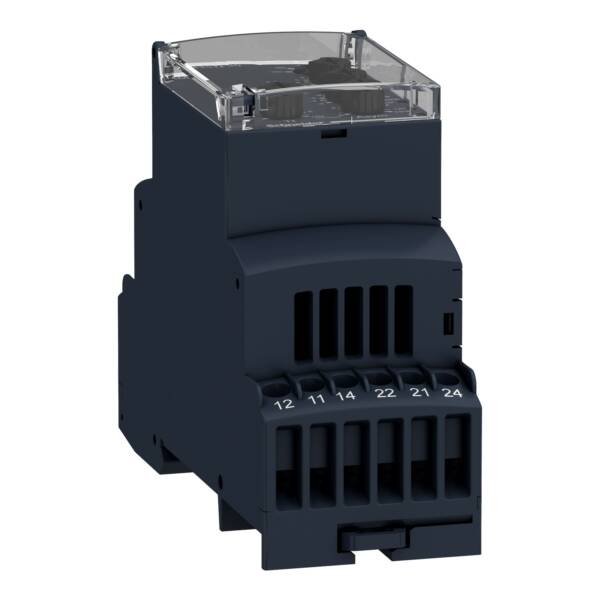

RM35UB3N30

Modular 3-phase voltage control relay, 5 A, 2 CO, 120…277 V AC - Schneider Electric - RM35UB3N30

Control

~~List Price £221.91 +VAT~~

Our Price £166.43 +VAT

SAVE 26% OFF List Price

Fast Track Delivery Product

This Harmony RM35-UB allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Control Relays
Part No: RM35UB3N30
Weight (kg): 0.13 kg
Type: Harmony Control Relays
Width: 35
Rated control supply voltage Us at AC 50HZ: 120…277 V
Rated control supply voltage Us at AC 60HZ: 120…277 V
Type of electric connection: Screw connection
Voltage measurement range: 120…277 V
Phase sequence monitoring: FALSE
Function over voltage detection: TRUE
Phase imbalance monitoring: FALSE
Phase failure detection: TRUE
Depth: 72
Function under voltage detection: TRUE
Number of contacts as change-over contact: 2
Height: 90
Voltage type for actuating: AC/DC
Max. permitted delay-on energization time: 0.65
With detachable clamps: FALSE
Max. permitted off-delay time: 30
Min. adjustable off-delay time: 0.3

Datasheet for RM35UB3N30 - Modular 3-phase voltage control relay, 5 A, 2 CO, 120…277 V AC - Schneider Electric - RM35UB3N30
