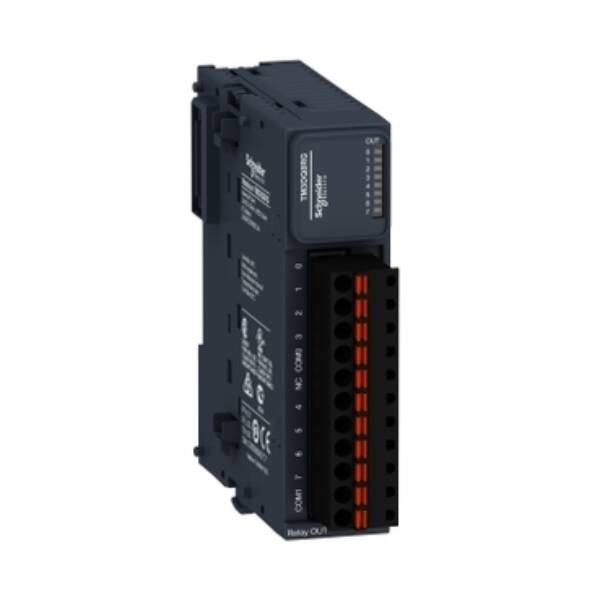

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 8 relay outputs with sink or source (positive/negative) logic. It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for outputs. It offers mechanical durability of 20 million cycles. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3DQ8RG

Weight (kg)

0.23 kg

Type

Modicon TM3

Output current

2

Type of electric connection

Spring clamp connection

Voltage type of supply voltage

AC/DC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Relay

Digital outputs configurable

FALSE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at output

30…264 V

Supply voltage AC 50 Hz

240 V

Supply voltage AC 60 Hz

240 V

Time delay at signal exchange

10 ms

Height

90

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

AC/DC

Category according to EN 954-1

1

Width

27.4

Number of digital outputs

8

Suitable for safety functions

FALSE

Redundancy

FALSE

Supply voltage DC

24 V

Explosion safety category for dust

None

Depth

84.6

Explosion safety category for gas

None
