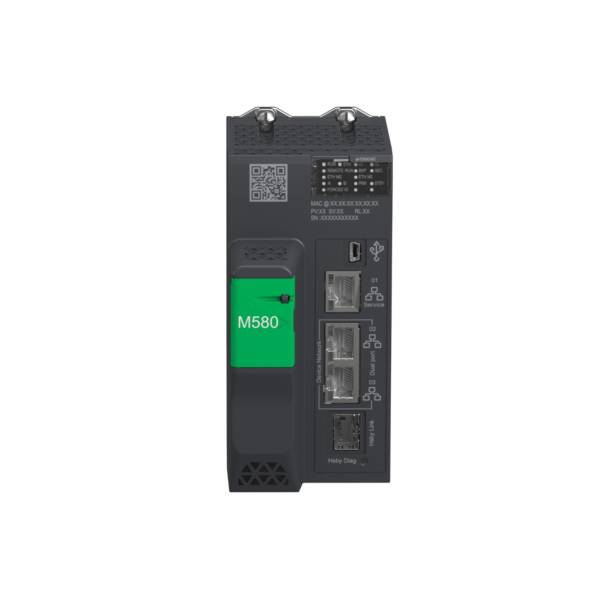

Modicon M580, Kit made of: 2x BMEH584040 + 2x 490NAC0100 - Schneider Electric - BMEH584040K

Modicon M580, Kit made of: 2x BMEH584040 + 2x 490NAC0100 - Schneider Electric - BMEH584040K

BMEH584040K

Modicon M580, Kit made of: 2x BMEH584040 + 2x 490NAC0100 - Schneider Electric - BMEH584040K

Automation

~~List Price £22,635.49 +VAT~~

Our Price £18,108.39 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This hot standby (HSBY) kit is an accessory kit of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC). It is made of 2x BMEH584040 processor module and 2x 490NAC0100 SFP socket. It is an IP20 rated product. It weighs 1.698kg. It is suitable for medium to large process applications. This product is certified by CE, CSA, RCM, UL, Merchant Navy, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Brand: Schneider Electric
Range: Modicon M580 - ePac
Part No: BMEH584040K
Weight (kg): 2.20 kg
Type: Modicon M580 - ePac
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces USB: 1
SIL according to IEC 61508: None
With optical interface: FALSE
Additional program memory possible: TRUE
System accessory: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 134.6
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 130.3
Redundancy: TRUE
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: ATEX dust-ex-protection, Cat. 3D
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 64.6
Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
With display: FALSE
Supporting protocol for SafetyBUS p: FALSE
Processing time (1K, binary operation): 0.025
Model: Modular
Voltage type of supply voltage: DC
Type of memory: NVRAM
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Memory size: 16384
Supporting protocol for PROFIsafe: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: TRUE
Radio standard WLAN 802.11: FALSE
Appendant operation agent (Ex ia): FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: TRUE
Front build in possible: FALSE
Supporting protocol for KNX: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for CAN: FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: TRUE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: TRUE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of HW-interfaces industrial Ethernet: 4

Datasheet for BMEH584040K - Modicon M580, Kit made of: 2x BMEH584040 + 2x 490NAC0100 - Schneider Electric - BMEH584040K
