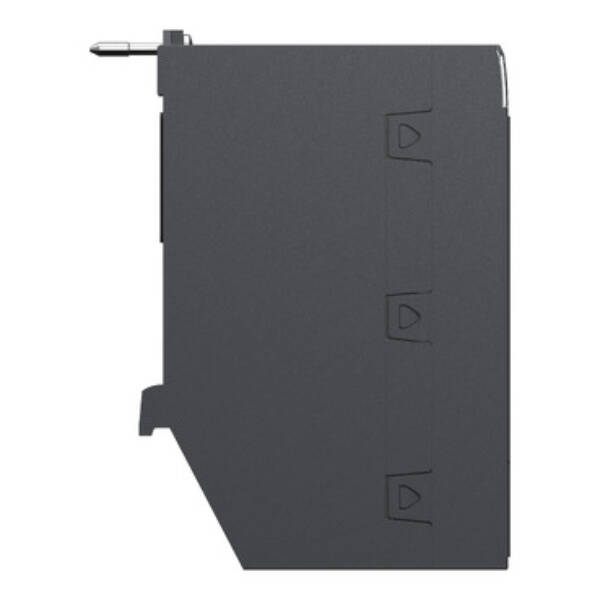

"This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 8 normally open and normally close isolated relay outputs, and it is supplied with 24 to 240V AC/24 to 125V DC." "This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 2652590 hours of MTBF." "This discrete module has a weight of 0.189kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDRC0805

Weight (kg)

0.34 kg

Type

Modicon X80 I/Os

Input current at signal 1

0.65

Type of electric connection

Plug-in connection

Output, current

4

Voltage type of supply voltage

AC/DC

Short-circuit protection, outputs available

TRUE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Relay

Digital outputs configurable

TRUE

Performance level acc. EN ISO 13849-1

None

Permitted voltage at output

125 V

Appendant operation agent (Ex ia)

FALSE

Supply voltage AC 50 Hz

250 V

Permitted voltage at input

125 V

Supply voltage AC 60 Hz

250 V

Type of voltage (input voltage)

AC/DC

Height

100

Time delay at signal exchange

0…10 ms

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

AC/DC

Category according to EN 954-1

1

Width

33

Number of digital outputs

8

Suitable for safety functions

FALSE

Redundancy

FALSE

Explosion safety category for dust

None

Supply voltage DC

125 V

Depth

150

Explosion safety category for gas

None
