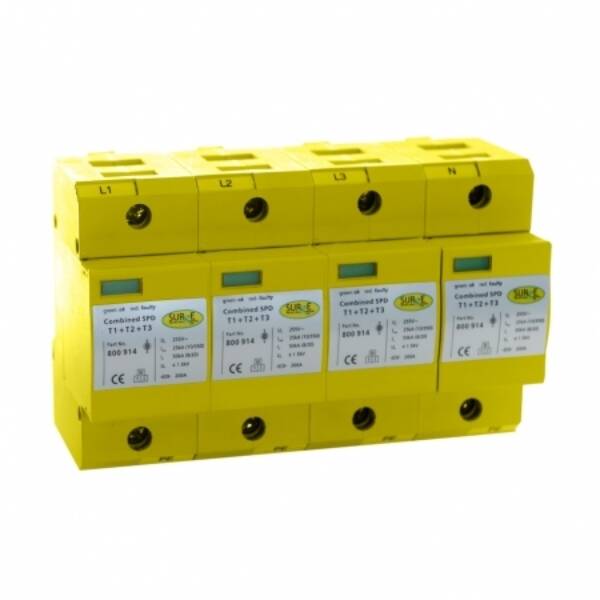

800914 - 100ka (level 1), 3 phase device, with window indication and pluggable modules, for TNC-S and TN-S installations.
800914 - 100ka (level 1), 3 phase device, with window indication and pluggable modules, for TNC-S and TN-S installations.

800914

800914 - 100ka (level 1), 3 phase device, with window indication and pluggable modules, for TNC-S and TN-S installations.

Power

Lightning protection Level 1, which is the highest protection level 100kA 10/350µs. Enhanced protection to BSEN62305, BSEN61643-11 & BS7671. Combined arrester Type 1+2+3 can handle lightning currents and protect sensitive electronic equipment. Visual indication of status. Pluggable replacement modules. Remote changeover contacts can be linked to BMS, buzzer, light etc. Din rail mountable. Minimum backup fuse / MCB 63A. Recommended cable size 25mm².

£380.00 +VAT
Fast Track Delivery Product

Specifications

Brand
Surge Protection Devices
Part No
800914
Weight (kg)
0.09 kg

Datasheet for 800914 - 800914 - 100ka (level 1), 3 phase device, with window indication and pluggable modules, for TNC-S and TN-S installations.
